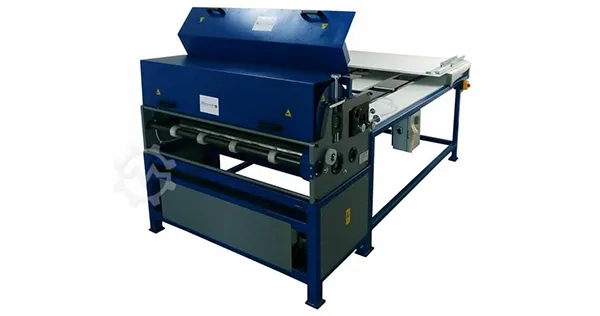

FlexoPrinter MS - corrugated cardboard flexoprinting machine

Machines for printing are intended for printing formed or non-formed cartons of chromo cardboard packaging, up to a seven-layer cardboard in one or more colors. To print a seven-layer cardboard used thinner cliches for printing cartons of chromo cardboard used thicker cliche. High accuracy when printing, as well as the number of pieces are achieved by fine-tuning the clearance between the rubber rollers that are used to color the passage of cliches. On customer request machine can have manual or automatic adding cardboard.

Features:

• For formed or non- formed boxes
• Precision printing
• Fine roller settings

Machine Specs

Characteristics(ver.1)

• Mains voltage - 3x380V
• Energy consumption - 1,5KW
• Printing width - 1000mm
• Working width - 1200mm
• Working length - 940mm
• Cylinder diameter for clichés - Ø 292mm
• Thickness of cardboard - 2,5-8mm
• Capacity - up to 2500 pcs/h
• Width of the machine - Working width + 250mm
• Length of the machine - 3500mm
• Height of the machine - 1300mm
• Weight of the machine - 450kg - 800kg
• Color - One or Two

Characteristics(ver.2)

• Mains voltage - 3x380V
• Energy consumption - 1,5KW
• Printing width - 1400mm
• Working width - 1700mm
• Working length - 940mm
• Cylinder diameter for clichés - Ø 292mm
• Thickness of cardboard - 2,5-8mm
• Capacity - up to 2500 pcs/h
• Width of the machine - Working width + 250mm
• Length of the machine - 3500mm
• Height of the machine - 1300mm
• Weight of the machine - 450kg - 800kg
• Color - One or Two
