Sirio

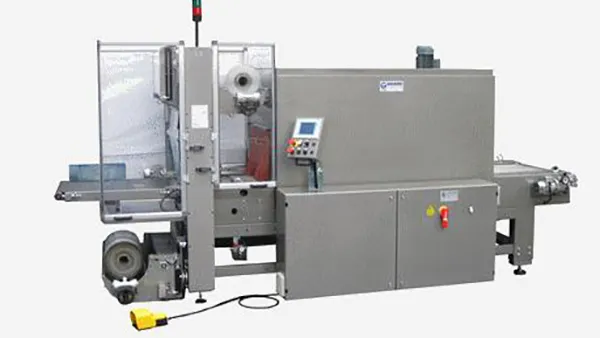

SirioAutomatic machine with product feed conveyor in line set up for manual loading of the product on the belt or inserted in completely automatic lines.Suitable for packaging individual or already packaged products such as boxes, trays, hanks of cable, parquettes, or light to very light products with a minimum height of 3mm such as boxes, linen, reams of paper, magazines, leaflets.Possibility of total closing of the bundles by means of superimposition and lateral auto-gluing.

Available optionals

Additional 400 mm insulated caps positioned at the tunnel exit.

Too full photocell at tunnel exit is recommended when the machine is inserted in an automatic production cycle. The system allows automatic management of product accumulation at the tunnel outlet without having packages blocked inside the tunnel.

Pneumatic product pressing unit for unstable packages, with adjustable height, holds the package in position before the welding bar descends

Film presser roller unit installed at the tunnel outlet compacts the excess film that remains on the sides of the package when total closure of the package is required

Upper and lower film spool cutting unit using just one spool in order to package small or medium sized products on 2-3 tracks for increased production and optimized use of the machine's potential.

Electrical hoist unit for lifting the upper film spool

Upper and lower film unspooling units with entry at 90°

Product containment guides positioned after the welding bar

Pneumatic lifting of the film towing roller to facilitate spool change operations.

Manual lifting of the lower/upper spool joint in order to speed up changing.

Product protection lateral guides positioned inside the tunnel.

Machine mounted on wheels so that it can be moved without the aid of lifting equipment

Roller conveyor with thick rollers positioned at the tunnel exit, under the package cooling unit. Especially useful for packaging groups of products using film only. These rollers facilitate the passage of the packages without causing any disintegration of them, resulting in a compact bundle once it is cooled.

Automatic height adjustment of the welding bar.Semiautomatic or automatic bundle ejection system inside the tunnel chamber by means of appropriate devices.

Polyester canvas rectilinear conveyer belts arranged in various measurements controlled by motion variator for automatic product movement.

Rectilinear idle roller conveyors for gravitational transport and accumulation of products Motorised roller conveyors with clutched rectilinear rollers, available in various measurements controlled by motion variator for automatic product movement.

Motorised 90°-180° curves with thermoplastic resin "flex" chain controlled by motion variator for automatic product movement.
