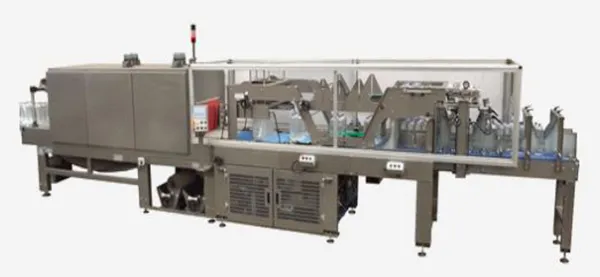

Vega

Vega

Vega lines work with film throwing, making it possible to use printed film with centring of the print on the bundle with even higher performance and speed.

These lines include the latest mechanics, new generation PLCs, wide flexibility of use as well as rapid and precise format change.

Possibility of packaging products of small or medium dimensions on double or triple tracks.

Suitable for a wide variety of product types, whether made from glass, plastic, cardboard or metal.

To meet the various requirements the following have been created:

Channelling units for rectangular or square shaped products

Box overlay feeders, bundle overlay clusters,

Conveyor belts and roller conveyors.

Available optionals

Additional 400 mm insulated caps positioned at the tunnel exit.

Too full photocell at tunnel exit is recommended when the machine is inserted in an automatic production cycle. The system allows automatic management of product accumulation at the tunnel outlet without having packages blocked inside the tunnel

Pneumatic product pressing unit for unstable packages, with adjustable height, holds the package in position before the welding bar descends

Upper and lower film spool cutting unit using just one spool in order to package small or medium sized products on 2-3 tracks for increased production and optimized use of the machine's potential.

Electrical hoist unit for lifting the upper film spool

Upper and lower film unspooling units with entry at 90°

Photo not available

Product containment guides positioned after the welding bar

Pneumatic lifting of the film towing roller to facilitate spool change operations.

Manual lifting of the lower/upper spool joint in order to speed up changing.

Product protection lateral guides positioned inside the tunnel.

Machine mounted on wheels so that it can be moved without the aid of lifting equipment

Roller conveyor with thick rollers positioned at the tunnel exit, under the package cooling unit. Especially useful for packaging groups of products using film only. These rollers facilitate the passage of the packages without causing any disintegration of them, resulting in a compact bundle once it is cooled.

Automatic height adjustment of the welding bar.

Semiautomatic or automatic bundle ejection system inside the tunnel chamber by means of appropriate devices.

Polyester canvas rectilinear conveyer belts arranged in various measurements controlled by motion variator for automatic product movement.

Rectilinear idle roller conveyors for gravitational transport and accumulation of products

Motorised roller conveyors with clutched rectilinear rollers, available in various measurements controlled by motion variator for automatic product movement.

Motorised 90°-180° curves with thermoplastic resin "flex" chain controlled by motion variator for automatic product movement.
