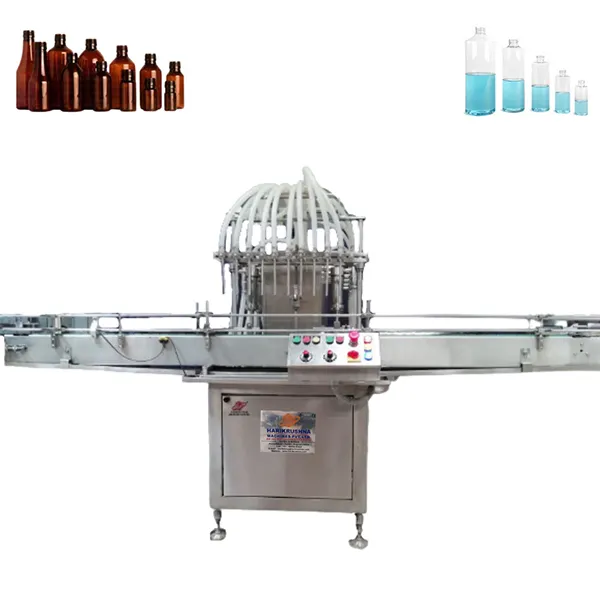

Automatic Volumetric Liquid Filling Machine

Automatic Volumetric Liquid Filling Machine

Automatic Volumetric Liquid Filling Machine

The Automatic Volumetric Liquid Filling Machine consists of main structure, product transmission belt with an adjustable guide, safety acrylic cover (OPTIONAL), Pneumatic/mechanical bottle stopping facility, nozzle & syringes, electrical panel, motor, sensor, AC drive & mains ON/OFF.


The Filling Machine is manufactured or developed accordance with GMP standards.

The structure is made of MS cladded with SS 304.

Rigid vibration free construction for trouble free performance.

SS Elegantly matt finished body.

The pharma/food grade PVC braded tubes are used for the filling purpose.

Drain tray around the machine platform.

Drip tray under the conveyor.

Elegant and easy control panel for total control on operation.

All interlock must be shown on control panel.

± 1 % Filling accuracy on single dose.

No Bottle No Filling System – Machine stop at Home position.

Diving nozzle device.

Minimum change overtime, from one size to another bottle or fill size.

Self-lubricating UHMW-PE guide profile for SS slat chain provides low friction wear surface, smooth and noiseless conveying.

Pneumatic/Mechanical bottle stopping arrangement.

Synchronized two nos. AC drives for main motor & conveyor belt.

SS measurement scale for filling volume adjustment.

Safety guard for conveyor gearbox, motor and pneumatic cylinders.

MCB for over load protection, and prevent against short circuit.

Inbuilt protection against over current, voltage fluctuation, short circuit in AC frequency drive.




Bottle size (Ø)

15mm Ø to 90mm Ø

Output speed

30 to 120 Bottles/Minute

Filling Volume

10 to 500 ml

Direction of Movement

Left to Right

Number of Head/Syringe

4 / 6 / 8 / 10 / 12 Nos.

Fill Size

10 ml to 500 ml Glass/PET Bottles

Power Supply

Three Phase / 415V AC / 50 Hz

Air Supply

4 to 6 Kg/Cm² (If pneumatic operated stopper)

Height of Conveyor

875 ± 50 mm Adjustable
