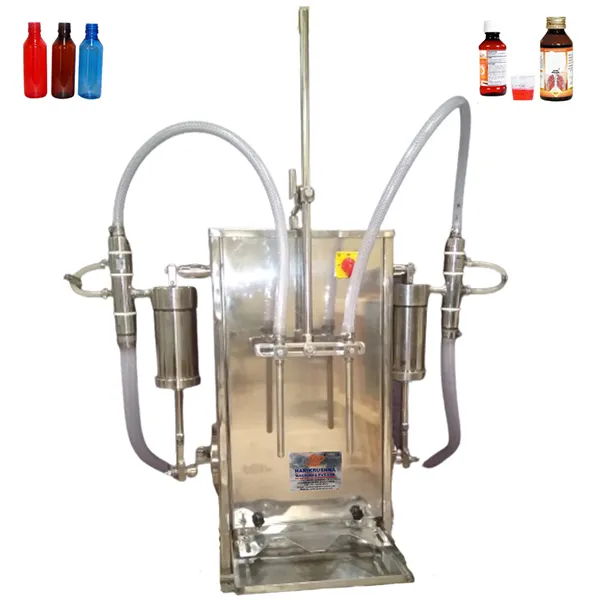

Semi Automatic Volumetric Liquid Filling Machine – Table Top
The Semi Automatic Volumetric Liquid Filling Machine – Table Top consists of the main structure, product holding mechanism, nozzles & syringes, electrical panel, motor & mains ON/OFF.
SALIENT FEATURES:
The Machine is manufactured or developed accordance with GMP standards.
The structure is made of MS cladded with SS 304.
Rigid vibration free construction for trouble free performance.
SS 304 elegantly matt finished bodies.
All contact parts are made from SS 316.
Reciprocating filling nozzle with self-centering device to avoid foaming.
The pharma/food grade PVC braded tubes are used for the filling purpose.
Minimum change over time, from one size to another bottle or fill size.
SS measurement scale for filling volume adjustment.
Filling accuracy ± 1% in single dose.
Flow of liquid can be changed.
Unique table top machine.
TECHNICAL SPECIFICATION:
Model
HMPL-VLF-2
Bottle size (Ø)
15 mm Ø to 90 mm Ø
Output speed
20 to 25 Bottles/Minute (Depending on viscosity of liquid and manual loading & unloading)
Number of Head/Syringe
2 Nos.
Fill Size
10 ml to 1000 ml Round Glass/PET Bottles (With Required Change Parts)
Power Supply
Single Phase / 230 V AC / 50 Hz
Net Weight Approx.
75 Kg
Dimensions
Table Top
