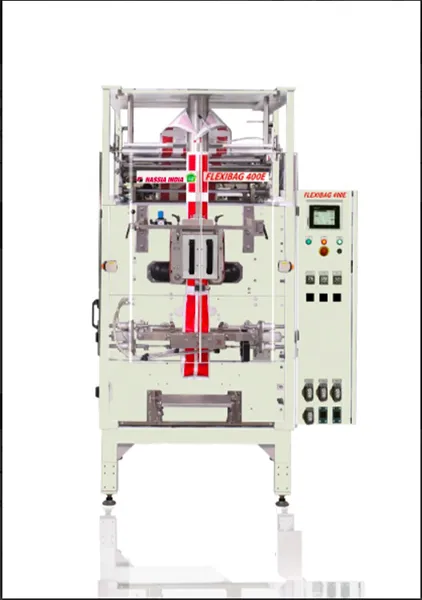

Flexi Bag 400 Modular VFFS Single Tube

Flexi Bag 400 Modular VFFS Single Tube

The Flexibag VFFS machines can pack multiple number of SKU’s on a single machine. Hassia India’s modular design platform allows for solutions at different price points while ensuring future upgradability for increasing production demands. Available in Eco, Servo and continuous motion. FLEXI BAG 400 is a single tube Vertical Form Fill and Seal machine suitable for the packages up to 16.5 liters of product volume.

Flexi Bag 400 Modular VFFS Single Tube Packaging Machines

Flexibag 400 machines give excellent film stability at all speeds of different versions of machine.

- Wide range of pack styles and sizes.
- Easy change over between pillow pouch to gusseted or block bottom.
- Specially configured designs available for Quad Pack, Penta Seal and Three side seal twin tube duplo.
- Three side seal twin duplo configuration is ideal for small packs with high PPM with the same footprint of single tube standard machine.
- Machine is capable of handling any heat seal-able film.

Technical Data

Reel Width		830 mm Max.
Reel Diameter		600 mm Max.
Reel Core Diameter		76 mm
Reel Weight		115 Kg Max. higher Reel weight can be provided
Materials
Packaging material film reel		Commercial available Heat sealable LLDPE, LDPE and Laminate Films.
Typical Output
	400E	400	400C
Nominal Speed (Dry Cycle)	Up to 70 Cycles/min.	Up to 100 Cycles/min.	Up to 140 Cycles /min
Standards
Components		Controllers and servo motors Allen Bradley / Mitsubishi,Pneum. Festo/SMC , HMI 7"
Options
Fillers	Accu Screw Auger Filler, Easy Dose Cup Filler, Flexi Weigh Belt Weigher, Flexi weigh Linear Weigher, Flexi Weigh Net Scale
Pouching Options	Pillow Pouch, Gusset, Block Bottom, Quad Pack, Penta Seal, 3 Side Seal
Others	Packing Styles – D-Cut Punching, Euro-Hole, Punch Hole, V-Notch and Easy –Tear. Product Feeding System, Take –Up Conveyor, Metal Detector, Check weigher, Maintenance Platform, end of line equipment.
