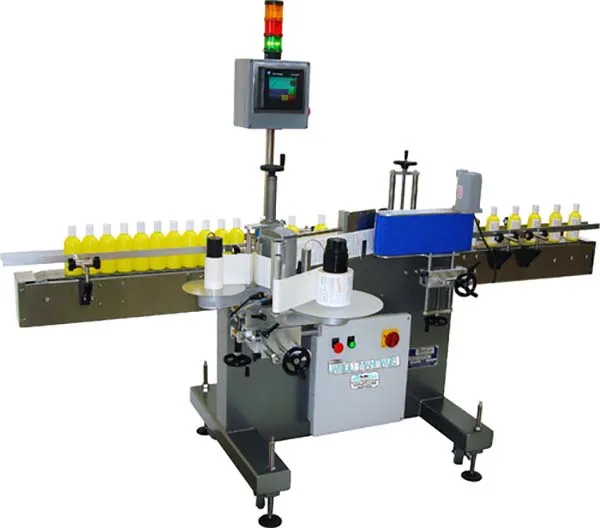

LW-40 Wrap Labeler

LABEL-VANTAGE

Automatic Round Product Labeling System

Model LW-40 is a Pressure Sensitive Full & Partial Wrap Labeler for Round Bottles.  Labeling Speeds of up to 40meters/ 1,500inches per minute.  The Labeling applicator adjusts on 5 axes.  European design.  User friendly controls and a large color touch screen make changeovers easy and quick.

Ideal For:

• Full and partial wrap pressure sensitive labels
• High Speed Applications

Features:

Full and Partial wraps:

• Straight in-line automatic labeller for plastic, metal, fiber and glass round containers.

European designed field proven label applicator:

• Variable speed servo drive motor.
• Standard label reel diameter up to 300mm/12” with 76mm/3” core diameter.
• Can accept a web width of up to 4.5” – Larger Available.
• Wrap station 6” x 14” allowing full wrap of most bottles.  Others available.
• Labeling speed:  Up to 40 meters per minute/1,500 in. per minute with independently driven reel holder.
• Proprietary full 5 axis adjustment of applicator head.
• Unwind unit gives constant web tension.

Heavy Duty Design:

• One piece welded uni-frame (Patented Design) for 24-hour/7-Day operation.
• Portable epoxy coated steel compact base frame with stainless steel leveling screws with floor pads.
• Oversize stainless steel shafting with calibrated settings throughout.
• 8 foot long synchronized variable speed conveyor with Stainless Steel infeed and discharge conveyor sections (Longer lengths and custom layouts available).

Controls:

• Clearly laid out operating display for safe and easy use.
• Color TFT touch screen control system with rotating support for front and rear operation.
• Label counter down with operator alerts (precisely counts the number of labels dispensed by applicator).
• Photo-electric non-contact label and bottle detectors.
• Menu driven microprocessor control with over 250 alpha-numeric recipe capacity
