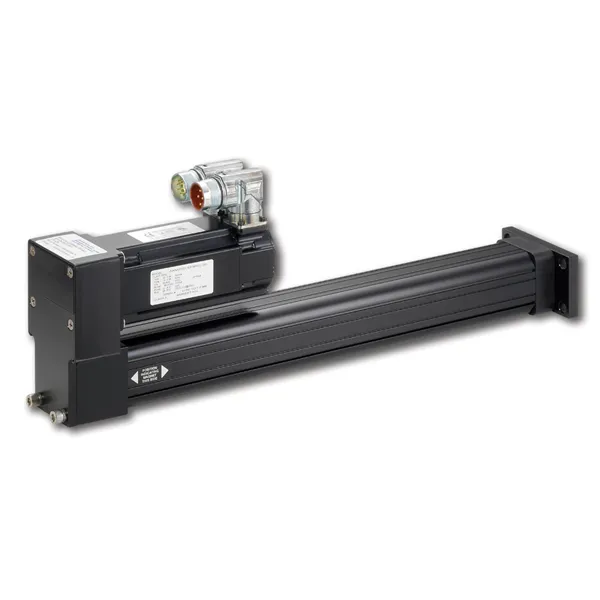

N2 Series Electric Cylinders

N2 Series Electric Cylinders

The N2 Series is an economical, light-duty electric cylinder with a small package size designed for exceptional durability and ease-of-use. The complete system provides simple extend-retract motion, positioning either to predetermined stop locations or to an analog voltage input.

Features

Motors available for use with the N2 Series include:

• Kollmorgen T22T/V and T31T/V Series hybrid stepper motors (P7000 drive recommended)
• Kollmorgen AKM23C and AKM23DSeries AKM brushless servo motors
• NEMA 23 custom motor mount

Features

• Max stroke length: 571 mm (22 in)
• Max thrust: 2,670 N (600 lbf)
• Ball or lead screw drive: 2, 5 or 8 revolutions per inch pitch
• Stepper, servo and custom motor options
• Type 380 die-cast aluminum, epoxy-coated bearing housing
• Type 304 stainless steel, 1/4 hard, polished thrust tube
• Ball bearing support
• 6063 T-6 aluminum, hard-coated anodized and Teflon-impregnated cylinder housing
• Polyurethane wiper seal
• Carbon steel acme or ball screws

Options

• Standard or custom lengths to 0.1 inch
• Threaded, eye, spherical or clevis rod ends
• Magnetic home and limit sensors
• Water resistant option
• Linear potentiometer output
