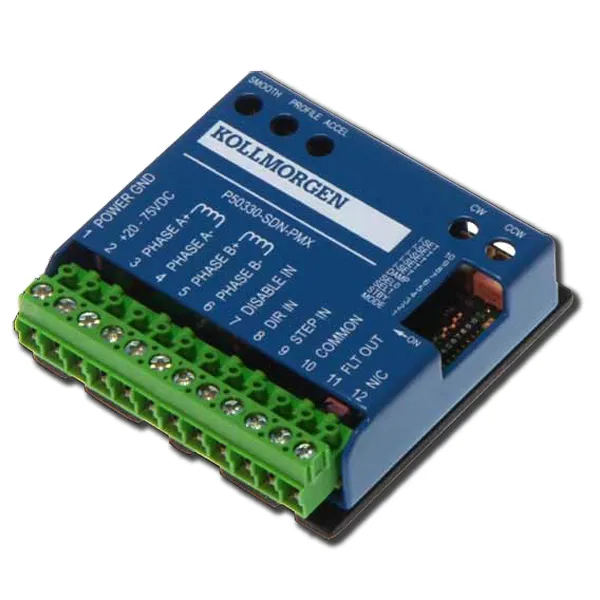

P5000 Stepper Drive

P5000 Stepper Drive

The P5000 is a compact micro-stepping stepper drive optimized for high system performance with Kollmorgen's industry leading POWERMAX II stepper motors. It is an impressive yet simple addition to the Kollmorgen stepper drive family. Pairing a stepper system doesn’t get any easier! The P5000 and Kollmorgen stepper motors are meant to be together. With easy access smoothing and profile potentiometers for optimized performance.

Features

• Current output from 0.7-3.5 A peak; DIP switch selectable in 0.2 Amp increments
• Bus Voltage 20-75 Vdc
• Wave matching via potentiometers for Kollmorgen motors to provide optimal performance for the Kollmorgen Stepper Motor Families.
• All Inputs and Outputs are Optically Isolated
• Command Source from External Step and Direction Inputs or Internal Velocity Controlled Oscillator (VCO); DIP switch selectable
• External Single-Ended Step and Direction Command
• Disable Input
• Fault or Enable Output
• VCO Mode
• VCO allows for velocity control via 2 seperate potentiometers for CW and CCW rotation and a third potentiometer for acceleration.
• CCW Jog Input
• Run/Stop Input
• Run/Stop Output
• CW Speed trimpot
• CCW Speed trimpot
• Accel/Decel trimpot
• Pulse Multiplier smooths micro-stepping
• Idle Current Reduction; DIP switch selectable
• Compensation for mid-range instability
• RoHS & CE certified
