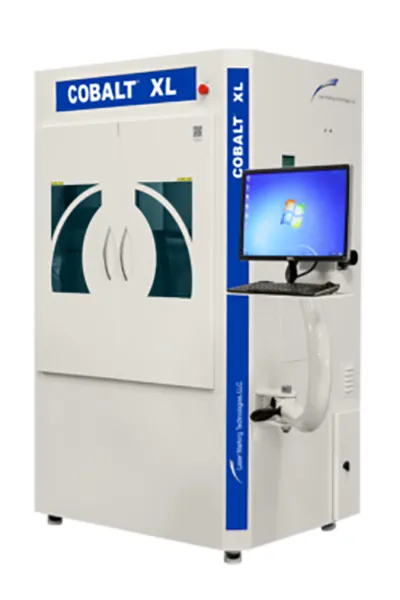

COBALT®XL

Cobalt® XL Specifications/Footprint

Max Marking Area:

Standard 163 FL Lens: 4.33″ x 35″ (with auto x axis)

Optional 100 FL Lens: 2.15″ x 32.15″ (with auto x axis)

Optional 254 FL Lens: 6.89″ x 36.89″ (with auto x axis)

Machine Footprint: 55″W (less monitor swing arm) x 36.68″D x 77.5″H

Max Work Piece:

Standard 163 FL Lens:

Factory set: Up to 8″H x 44″W x28″D

User Adjustable: 41″H x 44″W x 20″D

Optional 254 FL Lens:

Factory set: Up to 8″H x 44″W x28″D

User Adjustable: 37″H x 44″ W x 20″D

Laser Power: 20watt – 100watt

Laser Type: IPG, SPI MOPA or any fiber laser source of your choosing

Wavelength: 1050 – 1090nm depending on machine model

kHz: 0-1000kHz, depending on machine model

Electrical Requirements: 110VAC (15 Amps)

Fume Extraction Requirements: 205 CFM @96mb

Scan Head: LMT Digital Scan Head

Warranty: 3 years on IPG and SPI laser sources, 2 years on machine components. (see warranty terms)
