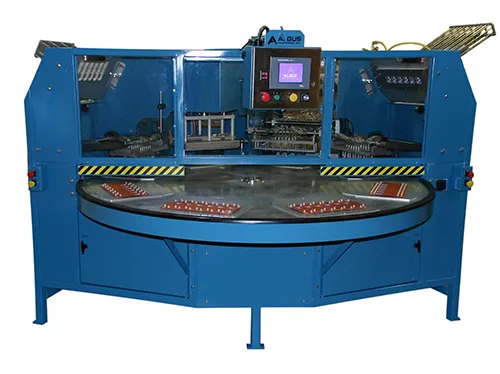

Algus 8SR and 8SR OS

The Algus 8SR and 8SR OS Sealing Machine is designed to meet the demanding seal specifications of difficult to seal packages. The 8SR is a production-based heat seal machine for large production runs. The seal area makes this machine ideal for large packages and multiple-up packaging.

The Algus 8SR and 8SR OS comes with a choice of three automatic eject system options: Packages are lifted from the nesting trays and either:

1) Deposited on customer conveyor blister-up from eject slide (standard); or

2) Lift and transfer, blister-down to take off conveyor or table (transfer eject); or 3) pick and transfer blister-up orientated on customer conveyor (hand-off eject).

Additional automatic feeders can be added at time of ordering which will enable the automatic loading of a second card for captive blister packs or specialised loading tooling to load customer’s product automatically.

Operation at a glance

• Blisters and cards feed automatically into nesting trays

• Operator loads product into blister (4 positions)

• Card is automatically heat sealed to blister on flange only

• Suction cups lift the packages from the nesting trays and place them face up on the eject slide for movement to take-off conveyor or table

• Simpler change-over due to separated feeder stations

Features at a glance

• Sealing capacity

• 305 x 405 – 8 SR / 305 x 480 – 8SR OS

• 4 open product load stations

• Digital temperature control

• Digital seal contact timer

• Adjustable sealing pressure

• Rapid changeover tooling

• Emergency stop switches

• 5 – 22 cycles per minute

• Production rates 100,000 packages per shift

• Full plc control with encoder, 5” touch panel
