CARTONERS
CARTONERS

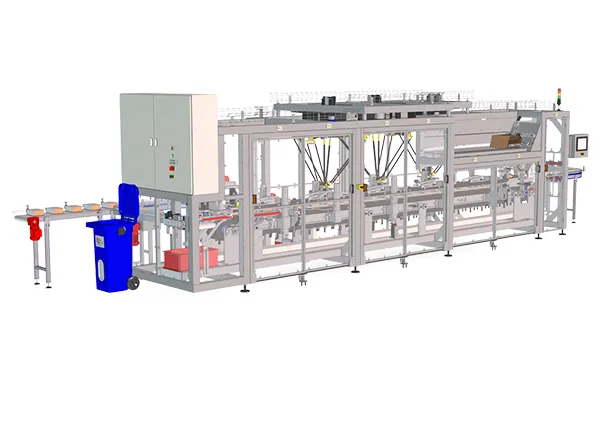

MG-Tech cartoners are fully integrated cartoning solutions (volume, filling and closing).
2 families of caseers are available depending on the method of filling the cases:
- vertical cartoning machines: filling the cases from above
- horizontal cartoning machines: filling the cases from the side
These machines provide packaging for all your products such as trays, jars, sachets, flasks, tubes, cans, etc.
Suitable for all types of cases, with hot melt gluing or retractable tab closure with or without locking, MG-Tech cartoners are perfectly suited for many activities: cosmetics, pharmacy and drugstore, dairy, cheese, pastries, groceries salty and sweet...
The strong point of MG-Tech cartoners is linked to the loading of products in the cases by robot, so the product flow is reduced to a simple conveyor on which quality control operations can be set up.
The number of robots for packaging the products is defined according to the desired rate, the equipment is therefore personalized according to the customer's needs.
Robust and modern in design, in steel construction or in stainless steel version, MG-Tech cartoners are designed with full height access doors at the front and rear for easy user access.
PRODUCT FEATURES
- Type of cases: ECMA family A
- Type of closure: hot melt glued or re-entrant tab
- Type of products: trays, jars, sachets, flasks, tubes, cans ...
- OTHER CHARACTERISTICS
Ergonomics
- Long-range case magazine with non-stop loading
- Intuitive 12 '' HMI console
- Full height front and rear access doors
- Visualization of operation by colored lighting by zones
- Guided or automatic format changes
Custom design
- Scalable solution according to cadences
- Number and types of robots for filling cases
- 2 families of cartoners (vertical and horizontal) depending on the products and storage in the cases
ADDITIONAL FUNCTIONS OF THE CARTONING
The operation of packing can be supplemented by other functionalities specific to your needs:
Upstream :
Product control (label presence, DLC, integrity, etc.)
Mixing to have several references in the same case
Leaflet removal
Downstream:
Identification of cases (marking or labeling)
Automatic cashing
