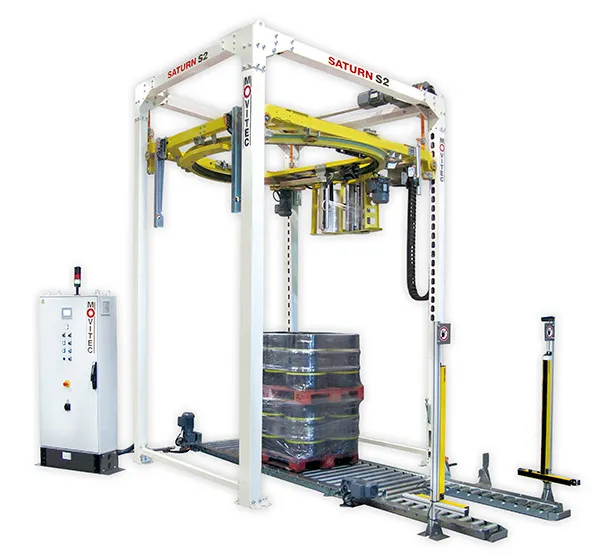

Automatic Pallet Wrapping Machine SATURN S2

The SATURN S2 wrapper has been designed to cover markets with low production, up to 45 pallets / hour, which until now were equipped with turntable wrappers or rotary arm or turntable stretch wrapper.

Features:

• LOW CAPACITY: up to 45 pallets/hour.

• Maximum quality, high performance and minimum maintenance.

• It is the best alternative to the turntable wrapping machine:

• more balanced, with less mechanical wear and maintenance. The load remains static: the film reels rotate around the load.

• Guaranteed savings of stretch film: 300% film pre-stretching. 1 m of film becomes 4m.

• Finishing without tails of film thanks to our efficient cut and welding device.

• Electronic and self-adjusting tension control depending on the profile of the load.

• Possibility of applying efficient dustproof and rainproof wrappings.

• Possibility of wrapping at ground level.

• Capable of applying bands (strips) at any height of the load.

Technical Properties:

• Voltage: 3 x 400 Vac / 50Hz +N +PE

• Power supply: 3 kW

• Compressed air: 6 bar

• Air consumption: 8 l/cicle

• Air consumption with top film: 64 l/cicle

STRETCH WRAPPING FILM:

• Maximum width: 500 mm

• Maximum diameter: 300 mm

• Core diameter: 76 mm

• Film thickness: up to 35 mcr
