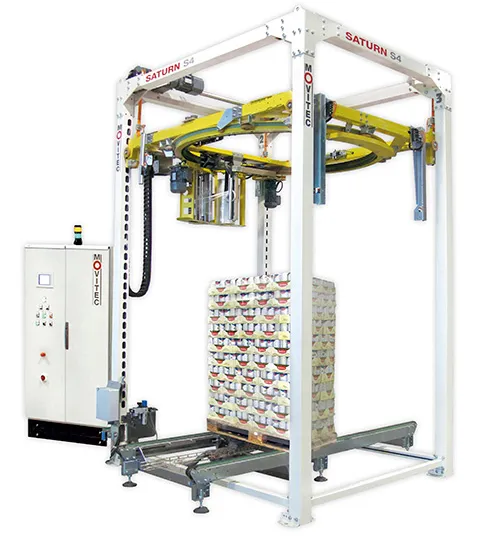

Automatic Pallet Wrapping Machine SATURN S4

The SATURN S4 wrapper has been designed to cover the markets with medium productions, up to 60 pallets / hour, being the best alternative to the arm wrapping machine.

The SATURN S4 wrappers equip the best technology available on the market, as well as the rest of our models with higher productive capacity, with electronic tension control and self-adjusting according to the load profile, which prevents film breakage or deformation of the load, ensuring maximum stability with the minimum film consumption.

Features:

• MAXIMUM CAPACITY: up to 70 pallets/hour.

• Maximum quality, high performance and minimum maintenance.

• It is the best alternative to the rotating or rotary arm wrapping machine: more balanced, with less mechanical wear and maintenance.

• Guaranteed savings of stretch film: 300% film pre-stretching. 1m of film becomes 4m.

• Finishing without tails of film thanks to our efficient cut and welding device.

• Electronic and self-adjusting tension control depending on the profile of the load.

• Possibility of applying efficient dustproof and rainproof wrappings.

• Possibility of wrapping at ground level.

• Capable of applying bands (strips) at any height of the load.

Technical Properties:

• Voltage: 3 x 400 Vac / 50Hz +N +PE

• Power supply: 4,5 kW

• Compressed air: 6 bar

• Air consumption: 8 l/cicle

• Air consumption with top film: 64 l/cicle

STRETCH WRAPPING FILM:

• Maximum width: 500 mm

• Maximum diameter: 300 mm

• Core diameter: 76 mm

• Film thickness: up to 35 mc
