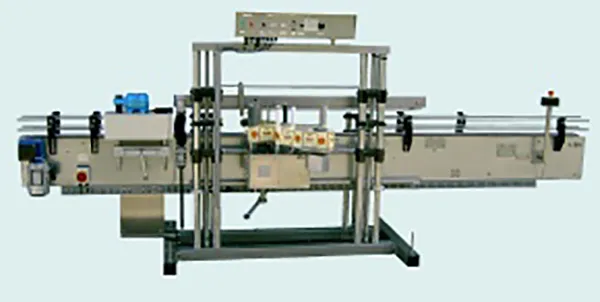

PHL 100 Multipurpose Labelling System

PHL 100 Multipurpose Labelling System

PHL 100 Multipurpose Labelling System

PLS have developed their PHL range of self adhesive labelling systems, which are proving of immense benefit to the pharmaceutical, detergent, chemicals, oil, cosmetics/toiletries and food industries, also with contract fillers and packers.

Totally versatile and robust, the PHL SYSTEMS are designed to meet our customer specific operational needs and cater for: -

  • A Wide range of shapes and sizes of container.
  • A variety of shapes and sizes of panel, tamper proof or wrap round labels.
  • High level of accuracy and performance in label application.
  • Ease and speed of product changeability and throughput rates.
  • Ability to readily accept Additional features to suit customers future production requirements.
  • Sophistication and reliability of optional microprocessor control.
  • Fixed or multi-position, eye level control console.
  • Maintenance free and cost effective servo motor drives.
  • Hot Foil Coding or Direct/Thermal Transfer Print and Apply.
  • Product Bar Code scanning facility with ability to integrate with external control systems.
  • Hygiene and Environmental needs fully catered for, including IP 65 standard.

Technical Specification

Services - 240Vac, 50Hz, 16A Air - Up to 6 bar

Conveyor dimension - from 3.5m long x 100mm wide

Throughput speed - Up to 180ppm

Container sizes - 30ml up to 20L

Label widths - 210mm as standard

Labelling speed - Up to 40metre/min

Machine Options

 Variable speed

 Microprocessor with touch screen

 Hot Foil Coder

 Thermal Printer

 Product Counter

 Low Reel and End of Label Reel Alarm

 Low Reel and End of Ribbon Alarm

 Clear label detection

 Outfeed rotary table

 Wraparound

 Product separator

 Barcode verification
