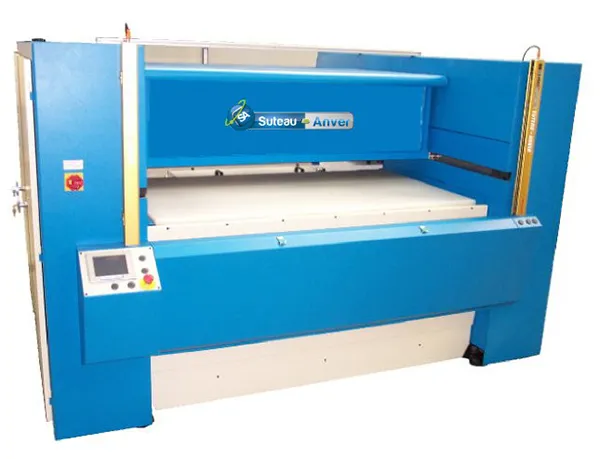

RECEDING HEAD DIE CUTTING PRESS – MODEL XPM
RECEDING HEAD DIE CUTTING PRESS – MODEL XPM
This receding head die cutting press designed and manufactured by SUTEAU-ANVER is solidly-built, accurate and silent, and specially designed for cutting any non-metallic materials, depends on its built-in hydraulics.
A horizontal moving beam moves forwards and back for each cut, driven by an electric geared motor, leaving the entire cutting area free and enabling the operator to position his die and remove the cut-outs.
If required, the die can be attached to the face of the beam and in that case, the operator collects only the cut out pieces. In other words, on this machine, the counterpunches can be situated either on the beam or on the rising table.
The return distance of the beam is adjustable on the tactile screen in increments of 100 mm (parametrable). The table rises vertically to meet the beam when the beam is in the forward position. This table applies the pressure, moved by two or four hydraulic cylinders beneath the table which apply balanced pressure at two or four points. This ensures that the table remains strictly parallel to the beam, wherever the cutting force is applied.
Our patented oil injection system operates through a main cylinder with check valves into the 2 or 4 table cylinders.There is an EC certified cell barrier to ensure the machine’s safety system at the front, and guards at the back.
It is used for cutting soft materials with one or more thicknesses into rolls or sheets up to a width of 3000 mm.
Fields of application :
- Synthetics
- Textiles
- Leather
- Gaskets
- Foam materials
- Plastics
- Carpet
- Felt
- Rubber
- Etc.
The material can either be fed in from the front or from the back by, for example, using a double roller material feed.
Technical features
|
Useful cutting power :
|
from 80 T to 300 Tons
|
|
Speed of the beam, forward and back :
|
52 m/mn
|
|
Accuracy of beam stop :
|
+/-5 mm
|
|
Stroke adjustable :
|
20 to 120 mm (220 mm in option)
|
|
Speed of cut :
|
22 mm/s not adjustable
|
|
Dayligth between table and beam(without die and without block) :
|
40 to 160 mm (250 mm in option)
|
|
Height of the work surface :
|
940 mm
|
Options
- Material drawn through by double roller
- Material feed by pincers
- Roller-holder (from 1 to 8 rollers or more on request)
- Mechanical posi-stops (on machine with 2 and 4 cylinders)
- System allowing to maintain the pressure (allowing to make thermocompression)
- Servo-motor on the beam allowing to obtain in front of an accuracy +/- 0.2 mm
- Block rotation system
- Cutting on rectified tempered steel plate (with mechanical posi-stops)
- Heating plate
- Dimmable lighting
- Die-holder above the beam
- Die-holder under the beam
- Machine without front cover
- Telemaintenance
- Designer version
- Painting according to RAL colour
