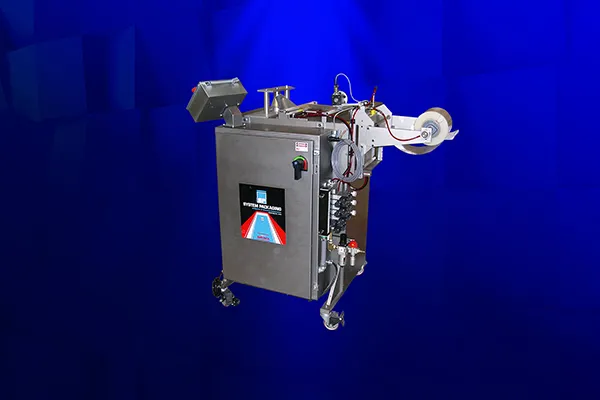

Model 1200 Vertical Form, Fill and Seal Machine

The Model 1200 machines are highly reliable, microprocessor-controlled, and can cut your packaging costs by up to 70%. Using inexpensive polyethylene or other colaminate roll tock, these systems produce 25-30 bags per minute, depending on the model, package size, and product. The 1200 will free you from costly inventories of pre-made bags and eliminate single source supply problems. It is available in two styles – Standard Hot Knife cutoff optional or Mechanical cutoff with hot bar seal.

Machine Specifications:

• Capable of producing up to 35 to 40 packages per minute

• The 1200 has a reciprocating sealing head that advances the material for bag length

• The sealing head does the end seals and length cutoff simultaneously

• This machine uses one roll of heat seal-able flat stock material

• The bag width is fixed based on the particular forming collar and material web width

• The material has a Dancer and brake that controls material tension and an encoder that regulates package length

• An optional photoelectric eye can be used for print registered material

• Machine operation and setup are done thru the touch screen controller

• This allows the operator to make adjustments quickly and easily

• The system is available in 6″ and 10″ wide models

• The 1200-6 can make a bag from 1.5″ to 6″ wide and up to 8″ long

• The 1200-10 can make a bag from 1.5″ to 10″ wide and up to 12″ long

• Most all heat seal materials can be run on the model 1200

• It uses 110 V.A.C. and 80 PSI

• It features a built-in batch counter
