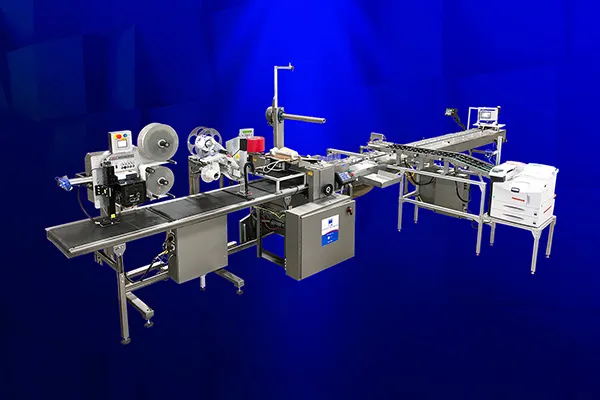

Model 9000 Random Length Double Web Machine

The 9000 random length machine is equipped with indexing feed fingers to speed the handling and loading of rectangular items such as books, CD’s, etc. It accepts a continuous stream of products varying in length and adjusts the package length accordingly. Speed will vary by length of the package and by the feed rate of products. Long or irregular shaped products can be accommodated with an optional belted infeed conveyor.

Machine Specifications:

• This machine uses a single roll of cold seal material to make the protective pouch

• The unit scores and folds the material so that the product can be placed in the crease of the web

• The sides are brought up and around the product and sealed above

• The end seals and length cutoff are done simultaneously in the sealing head of the system

• The machine uses pre-set length counters to regulate the package size

• Machine operation and setup are done through the touch screen controller

• This allows the operator to make adjustments quickly and easily

• The system is available in 12″ and 18″ high models

• The maximum width through the machine is 3.5″

• Lengths up to 48″ can be ran on a standard system

• Modifications can be made to run excessive length packages as well
