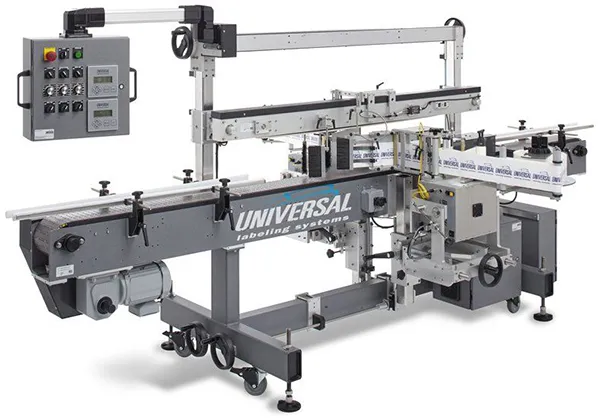

CP1000 FRONT & BACK PACKAGER SYSTEM

CP1000FRONT & BACK PACKAGER SYSTEM

FEATURES

• Heavy-duty system framework
• 6”wide x 12’ long Delrin chain conveyor
• All AC drives
• Product metering wheel
• Synchronous product positioning device
• Synchronous overhead hold down
• Photoelectric product sensor
• Two SL 1500 stepper-driven label applicators
• Label dispense speed up to 1500 ipm
• Encoder with speed following control
• Secondary label wipe-down devices
• 6.25” wide web capacity
• 12” label roll capacity 3” core
• Job save option
• UL certified NEMA 12 control enclosure with multi-level menu system

SPECIFICATIONS

• 83.7″W x 144″L x 67.3″H.
• Label dispense speed: 1500 ipm
• Label roll capacity: 12″ OD
• Web Width: up to 6.375″
• Electric: 120 VAC
• Shipping Weight: approx.
  1500 lbs
