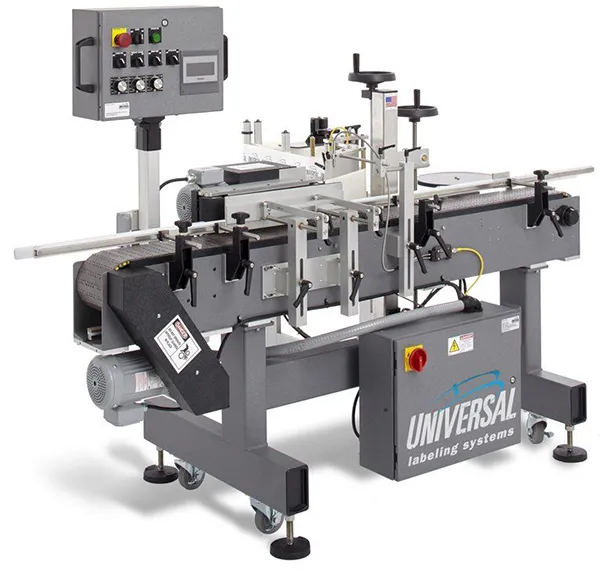

R320 ROUND PRODUCT SYSTEM

R320ROUND PRODUCT SYSTEM

FEATURES

• Heavy-duty system framework
• 6”wide x 6’ long Delrin chain conveyor
• All AC drives
• Product metering wheel
• Photoelectric product sensor
• L15-S stepper driven label applicator
• 6.5” wide web capacity
• 12” label roll capacity, 3” core
• Label dispense speed up to 1300 ipm
• 15” long label wrapping station
• UL certified NEMA 12 control enclosure

SPECIFICATIONS

• Dimensions: 51″W x 72″L x 56″H
• Speed: up to 1300 ipm
• Label roll capacity: 12″ OD
• Web Width: up to 6.5″
• Electric: 120 VAC
• Shipping weight: approx.
  1075 lbs
