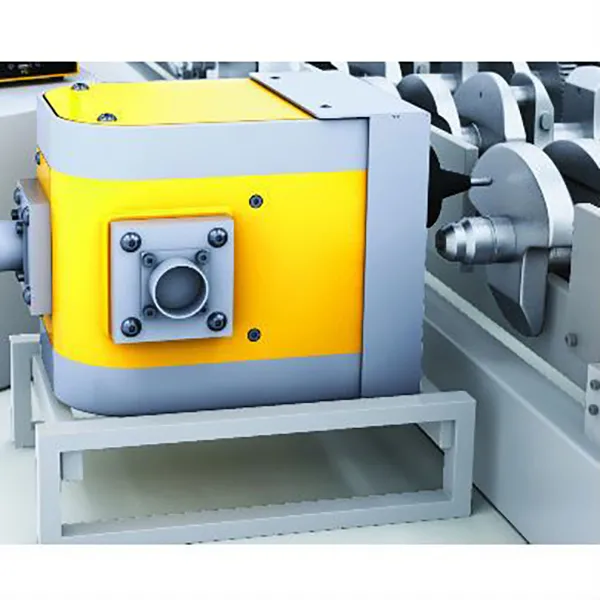

Integrated M4 Inline

The M4 Inline is the best marking solution for automated production lines, manual loading stations and custom engineered systems. Designed to be easily integrated in a computer controlled or PLC controlled environment.

Easily integrated into any production line with the adaptability of vertical and horizontal positioning, it is the ideal solution for efficient cost effective integrated part marking.

Features

• Robust: Frame moulded aluminium. Each axis is fitted with a ball bearing and a transmission system with automatic compensation
• Ergonomic: Vertical or horizontal positioning. The marking head is easily adaptable to any rackmount configuration due to a handy connection at the back of the machine
• Adaptable: The mounting connection cable can be connected at the back or on the top of the marking head to facilitate easy integration into the production line. (Three mounting bracket positions are available)
• Flexible: The first integrated marking equipment fitted with a 16 bus card for greater time efficiency (more info in technical data tab)
• Carbide tungsten stylus with a 90 degree angle (60 or 120 also available).
• IDI - Intelligent marking. Marks continuously between flat and curved surfaces with automatic adjustment managed by Multi4 software
• Low maintenance: Missing part detection, control of the marking tool (broken stylus/worn out spring etc.)
• Automatic detection of incomplete marks
• Two options to choose from for the marking head
• Quiet electromagnetic stylus technology
