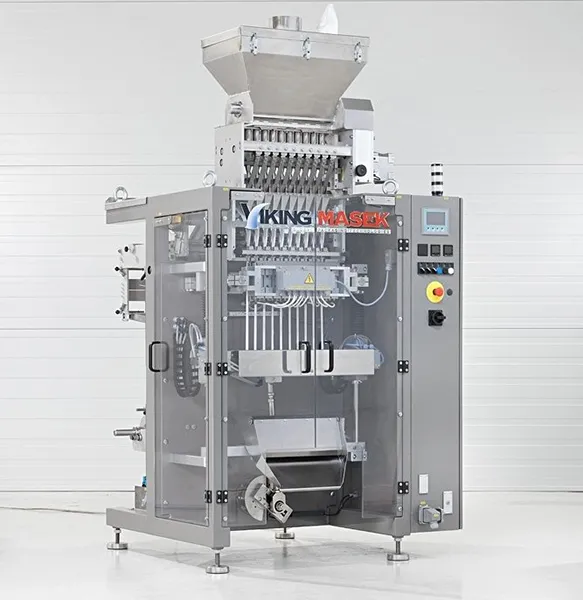

Stick Pack ST400

Stick Pack ST400

Looking for an economical solution for your stickpack needs? Our versatile multilane ST400 stickpack machine can accommodate from 2 to 10 lanes to form different shapes of stickpack pouches. Perfect for products like coffee, drink mixes, and cannabis as well as liquids or gels, stick pack machines can accommodate different bag shapes including pour spouts, tear notches and easy-open options. Semi or fully automated cartoning solutions are also available for individual or bulk cartoning.

 SPECIFICATIONS

• Maximum Roll Diameter: 400 mm (15.75")
• Maximum Film Width: 400 mm (15.75")
• Weight: 600 kg (1,325 lbs)
• Air Pressure: 6 bar (15 CFM at 90 PSI)
• Power Supply: 6 kVA (208-240 V, single phase, 60 Hz., 20 AMPS)

 FEATURES

• Film unwind and film tension control
• Film slitter and forming tubes - set per bag size
• Discharge chute
• Siemens or Allen Bradley control system
• Automatic film tracking
• Integrated inner light
• Easy change-over

OPTIONS

• Straight cut
• Zigzag cut
• Round cut
• Multi-lane volumetric filler, servo auger filler or servo liquid fillers
• Easy change-over parts and stainless storage cart
• Easy open features like tear notch or microperforation
• Various seal patterns and shapes
• Offset back seal
• Automatic stickpack length adjustment
• Individual discharge chutes
• Empty stick detection
• Empty stick rejection
• Dust suction nozzles
• Static elimination
• Film edge trimming and suction
• Embossing in the longitudinal seal
• Stainless steel construction
• Pharma construction (IQ/OQ)
• Robotic pick-and-place unit and automatic cartoning solutions
• Hot stamp, inkjet, or thermal transfer printer
• In-feed and out-feed conveyors
