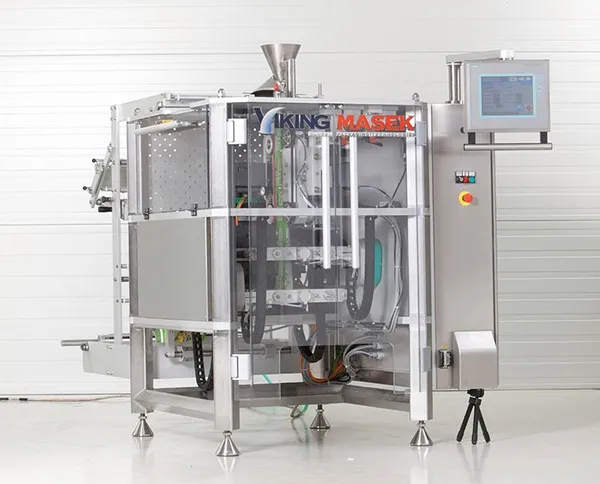

Viking Masek's continuous motion bagmaker Velocity 250 (300) is capable of production speeds up to 300 bpm. The unique center mounted filling tube and naturally counterbalanced sealing profile are designed to provide vibration-free, extremely smooth operation at all speeds. Our color graphic operator interface coupled with “off-the-shelf” PLC controls ensures industry-leading ease of use and the highest reliability. The Velocity is also extremely versatile, handling package sizes up to 300 mm (12“) wide.

SPECIFICATIONS

• Maximum Roll Diameter: 450 (17.75")
• Maximum Roll Width: 530 (20.87")/630 (24.8")
• Weight: 900 kg (1,985 lbs)
• Air Pressure: 6 bar (15-20 SCFM at 90 PSI)
• Power Supply: 6 kVA (480 V, three phase, 60 Hz., 20 AMPS)

 FEATURES

• Patented dual-jaw technology
• Robust stainless steel frame
• Siemens or Allen Bradley control system
• Servo jaw actuation
• New Teflon backseal system
• Vacuum pull belts
• Small footprint
• Short film path
• Minimal maintenance requirements
• Film unwind with tension control
• Product stagers
• Bag deflators
• Photo eye for bag length controls
• Runs most film structures
• Storage for 100 product recipes
• Quick film splice table
• No tool change-over
• Off-the-shelf components
• Jaw jam detection
