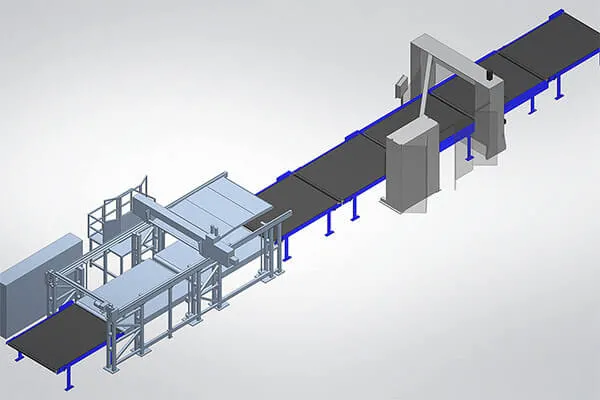

Cutting line BSA and OFS-VS

Cutting line BSA and OFS-VS

Cutting centre consisting of a BSA horizontal splitting machine with integrated de-stacking device and a vertical OFS-VS contour cutting machine for the automatic cutting of blocks into sheet ware and from sheet ware into contours without any manual intervention

You benefit from this

By automatically unloading and automatically de-stacking each sheet after they have been cut at the BSA, a stack with hardly any offset is formed which is then transported fast and easily to the OFS-VS machine where it is cut into contours.

Simultaneous, parallel and all-automatic processing of the jobs at both foam cutting machines for achieving a very high capacity

Utilization of the cutting line for pure cushion and furniture cuts as well as for the cutting of technical parts

Interlinkage of both cutting machines through a superior control

Splitting of elastic PUR materials as well as of lightweight polyethylene and similar materials thanks to the employment of knife bar and pressure roller

Very high production capacity through a high cutting velocity of 100 m/min at the BSA and 80 m/min at the OFS-VS machine

Incorporation of shuttle systems for the integration of the cutting line into a complete production process

Application

Upholstery and furniture industry, automotive industry, packaging industryContour cutting (vertical knife)

Material

PUR foams and PUR rebond foams, PE, EVA, reticulated foams, melamine foams, sponge rubber, cellular rubber, Neoprene® (EPDM)

Cutting tool

BSA

Band knife 60 mm x 0.6 mm

OFS-VS

Precision-ground micro-toothed circulating knife 3 x 0.6 mm
