Cutting line OFS-HE3 and OFS-VS

Cutting line OFS-HE3 and OFS-VS

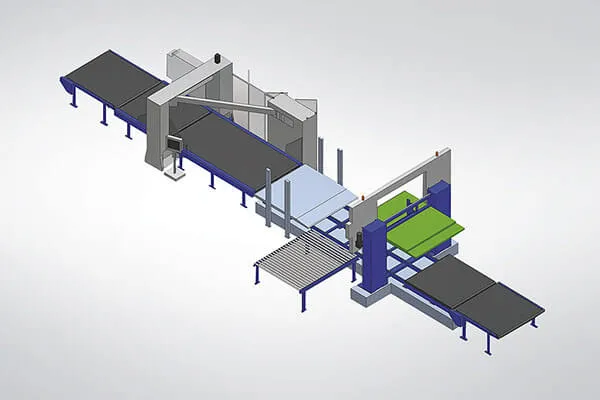

Cutting center featuring horizontal contour cutting machine OFS-HE 3, height-adjustable take-off conveyor and vertical contour cutting machine OFS-VS

You benefit from this

Utilization of the cutting line for pure mattress or furniture cuts as well as for 3D contours and technical parts

High capacity and flexibility of the cutting centre as both contour cutting machines can process different jobs at the same time.

Fully automatic sheet transport from the horizontal to the vertical contour cutting machine

Consistently high cut quality with no manual intervention in the production process (unmanned)

Both machines are linked to each other and are controlled by a superior software (POS)

Automatic production of 3D parts in one process instead of time-consuming gluing

System flexibly adapts to different space requirements - the machines can be arranged in a line or integrated in complete cutting lines

Application

Upholstery, mattresses, furniture, packaging and automotive industry as well as technical articles Contour cutting (horizontal knife)

Material

PUR soft foam, PUR HR foam, visco-elastic foam, latex, non-woven material, Basotect®

Cutting tool

Precision-ground micro-toothed circulating knife 3 x 0.6 mm
