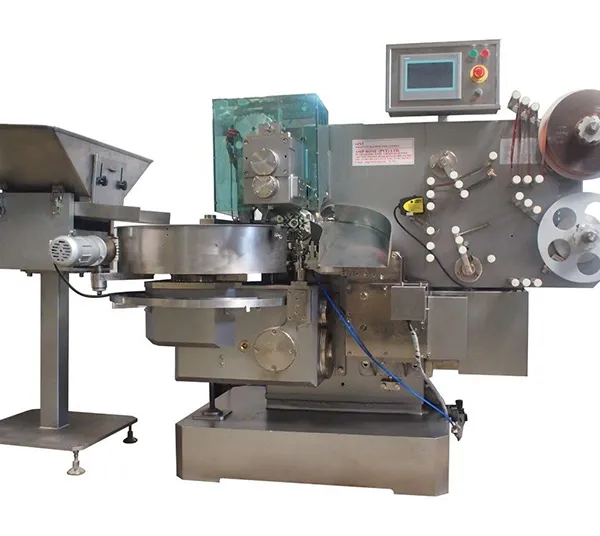

6IST Double Twist Wrapping Machine
6IST Double Twist Wrapping Machine
Overview
The 6IST single and double machine is designed to wrap a wide variety of different types and shapes of pre-formed sweets including solid and centre-filled high boiled lines, in double twist wrapping style.
Technical Data
OUTPUT
SIZE RANGE
- Length: 12 – 34mm
- Width: 12 – 34mm
- Thickness: 6 – 20mm
- Diameter: 14 – 29mm
DESCRIPTION
The 6IST single and double machine is designed to wrap a wide variety of different types and shapes of pre-formed sweets including solid and centre-filled high boiled lines, in double twist wrapping style.
Wrapping Material
Twist wrapping grades of cellulose film, waxed paper, PVC or cast polypropylene are suitable as an outer wrapper. The inner wrap, if required, should be tissue backed aluminium foil.
Machine Speed
An infinitely variable drive up to 500 cycles per minute is fitted. Actual outputs under production conditions will depend on the size and type of product.
Features and Benefits
– Minimal product/wrapper wastage.
– Ability to wrap all types of product and shapes.
– Fast/simple size changes.
– Simple reliable operations
– One operator for multiple machines.
– Reel run out/wrapper breakage control – standard.
– Paper ruffle switch – standard.
– No product no paper control – standard.
– AC variable speed drive – standard.
– Full canopy style guard – optional extra.
– Hot air blower – optional extra.
– Vibratory feeder – optional extra.
Power Requirements
6IST Machine: 2.2KW
Vibratory Feeder: 0.5KW
Hot air blower: 600W
Shipping
Nett weight: 900kg
Gross weight: 920kg
