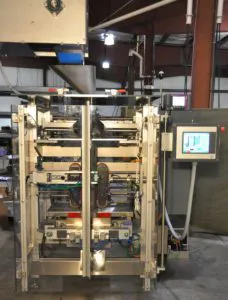

400 Bagger

400 Bagger

Bagmaster® VFFS Machine Standard Features:

  • Configured to meet NEMA 12 (IP52) standards

  • Robust open frame design provides excellent access to the machine interior

  • Web transport system with servo motor driven friction pull belts

  • Quick-opening pull belt mechanism (pneumatically operated) for ease of material set-up and size change-over

  • Machine control via 10.4” color touch screen. Includes intuitive operator guidance, fault diagnostics with help text for trouble shooting, and

  • production data acquisition. Program memory for 100 production recipes

  • Servo driven cross jaw movement

  • Product-in-jaw feature brings the machine to a stop if the seal bars do not close completely

  • Constant / resistance heat sealing system

  • Single film reel support with pneumatic film reel spindle

  • Motor powered packaging material unwind at rear of machine controlled via position monitoring of the dancer arm provides material infeed

  • with precise web tension control

  • Semi-automatic web tracking adjustment (left/right correction) via touch screen powered by a DC gear motor

  • Forming set for one bag size; various bag styles available

  • Electrical synchronization for dosing system (weigher, counter, auger, etc.)
