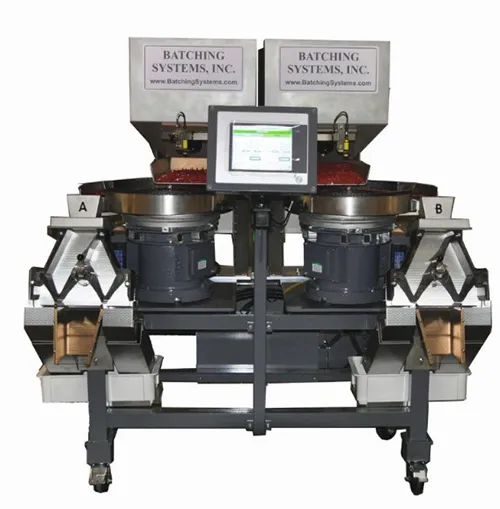

IV Continuous Counter

IV Continuous Counter

Batchmaster® Counters are the only counters that utilize patented dual view scanners that provide the highest accuracy count possible. Out of tolerance parts are rejected prior to entering a package. The latest Batchmaster® IV counter is an accurate high speed counting system that detects and rejects parts one-third smaller or larger than a target part thereby separating the good parts from the bad. The processing unit is designed with a transparent front panel for visual inspection of gate movement and product flow. These counters can easily integrated with upstream and downstream packaging equipment. Batching Systems can provide standalone counters or fully integrated turnkey packaging systems.

The Batchmaster® IV Counter now includes bar code reading and recipe management. Advanced programming and large 10.4" color touch screen provide user friendly intuitive set-up, data monitoring, self-diagnostics, verified motion control technology, remote access, multi-language options, and custom password lock outs.

Standard Features

Patented dual view optics, 3-D imaging, in-flight volume analysis, self-diagnostics, out of tolerance reject, high resolution scan, multiple dump feature, clean contact surfaces, partial accumulation feature, storable set-up parameters, continuous run operation, touch screen controls, expandable network, hydraulic stand on casters, compatible controls, no changeover tooling. Two-gate body disassembles without tools in seconds for easy cleaning.
