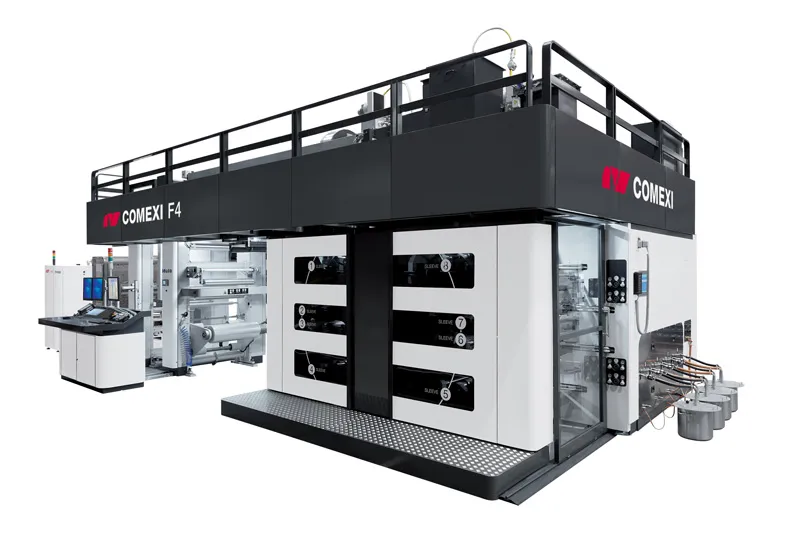

F4 Gearless Flexo Printing Press

COMEXI F4 is the most efficient solution for flexographic printing in short and medium runs. It plays a crucial role in the printing industry and is the market benchmark press in this segment.

It offers the best solutions for flexographic printing as it contains 720-920 millimetres wide and a 600 millimetres maximum format. It was the first press to incorporate FLEXO Efficiency patented concept. It allows the printing unit to change in less than one minute as it contains pipe-less magnetic blades, patented by Comexi.

This gearless flexographic printing press incorporates a special system capable to synchronize the central drum and the mandrels. It also proffers other technical elements to reduce strip wear. This press is a user-friendly machine designed to print fast and enhance productivity and efficiency. It is more accessible and simple to use.

Technical characteristics:


Type Gearless
Colours 8
Print width (mm – in) 670 / 870
26.3 / 34.2
Web width (mm - in) 720 / 920
28.3 / 36.2
Minimum repeat (mm - in) 240 / 260
9.4 / 10.2
Maximum repeat (mm - in) 600
23.6
Maximum speed (m/min - ft/min) 300
984.2
Dimensions (m - ft)

9.78 x 5.62 x 4.28 (standard machine 870 mm wide with shaftless unwinder and rewinder)

32.0 x 18.4 x 14.0 (standard machine 34.2 in wide with shaftless unwinder and rewinder)
