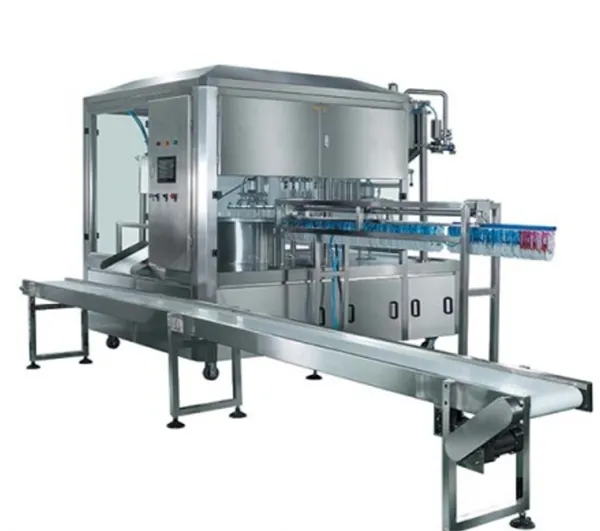

SPOUTED POUCH MACHINE
IPS-12BT (single head) and IPS-12BT-2 (Twin Head) – Centre Spout Pouch Filling and Capping Machine for Liquids and Pastes.
This spouted pouch filling machine has been specifically designed to incorporate a pre-made centre or side spout pouch, with CIP filling, cap sortation, insertion and torsion screw systems. Suitable for the food industry, medical and pharmaceutical industries. This machine is specified for filling pouches with liquids and pastes.
Running Procedure:
- Automatic bag feeding
- Automatic quantitative filling (option nitrogen filling)
- Automatic air blow nozzle stopper (option)
- Automatic cap feeding
- Automatic cap locking (servo motor control torque)
- Automatic bag out-feeding
- Automatic CIP cleaning (option)
IPS-D8 – Series High Speed Spout Pouch Filling and Capping Machine.
This is a fully automated production line. It has a varied filling range and high speed capacity of up to 5400 pouches per hour (for the 6 lane model). The IPS-D8 can be connected with CIP cleaning systems, PLC controls and touch screens —many systems can be adapted according to customer requirements. This machine is suitable for packing jelly, soy milk, yoghurt, mineral water, juice, ice cream, edible oil, seasoning, detergent and other chemical products.
TIJ date and batch code printing onto pouches is also available as an option with all this equipment.
