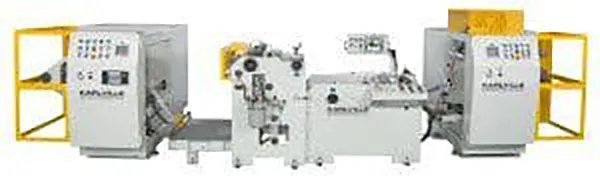

K5 COMPACT – Seam Machine

K5 COMPACT – Seam Machine

This Non-Stop machine features Automatic Cantilever Turret Unwind & Cantilever Turret Rewind. Both Servo & AC Motor technologies available for 500M/MIN. The machine is available in a 350mm lay-flat model. Non-Stop production translates to higher production, lower waste and savings in inspection cost. This Non-Stop machine features Automatic Turret Unwind & Turret Rewind. The machine is available in 350mm 500mm & 800mm lay-flat models. Non-Stop production translates to higher production, lower waste and savings in inspection cost.

Machine Specification - K5 - COMPACT

• Speed500 m/min
• Widths350 mm
• Material Widths850 mm
• Unwind Diameter600 mm
• Rewind Diameter600 mm
• Minimum Lay Flat Width55 mm with 18 mm Option
• Core Diameter3" (76 mm )
• Lay Flat Tolerence0.25 mm

Karlville Customers

Our customers are companies with fast growing operations in the market.

Films Always Straight Through Machine

Never forced side to side for oscillation. Even with turrets; complete turret moves back and forth on heavy duty linear bearings.

Precision Solvent Application

Direct Injection Needle Type Solvent Application with Proportional Solvent Controlled Integrated to PLC.

Flexibility

Fully Adjustable Forming System
Multiple Configurations to meet specific Converter Demands
Tightest lay flat tolerance in the industry
Precise Tension Control via Unwind & Rewind Load Cell System with Closed Loop Via PLC
Robust design & easy operator friendly Control System
