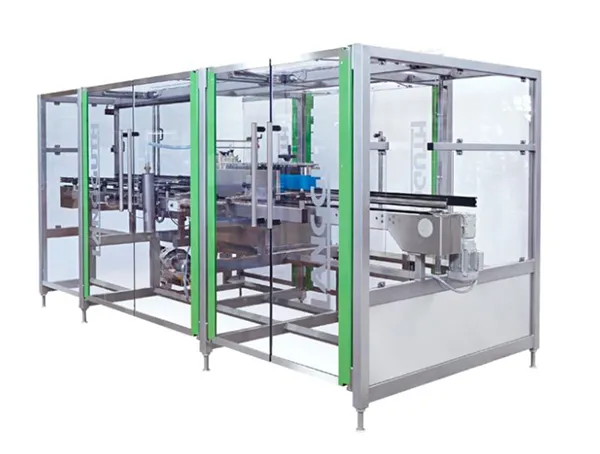

WetLAN 110

wetLAN 110

The flexible wetLAN 110 inline labeler specializes in labelling multi-size round containers receiving a single label – patch or wraparound. To optimize performance the wetLAN 110 includes three unique, easy changeover label magazine options. The wetLAN 110 is unmatched in the industry for its adjustment range – handling small and large label and container combinations, plus its ability to be sized for slow and high speed operation. Available options include bar code scanning, reject, orientation, label/container marking, tamper evident, and lid labelling.

Advantages:

Patch and wraparound labelling

High efficiency due to fast conversion and easy operation

Minimal investment in size parts

Attractive Purchase price – economic operation

Compact design

Low unit costs

Maximum uptime

Operation:

The labeler’s conveyor chain carries containers through the inline labeller. At the infeed a metering device creates a repeatable gap between containers, initiating progressive labelling processes. As a metered container is released a photo eye activates the label magazine. A label is separated from the stack in the magazine and guided past the glue roller. The glue roller applies a very thin and uniform glue layer onto the backside of the label. The conveyor chain speed and magazine label release are timed to achieve accurate label pick up by the container. Subsequent to label pick up, the container moves into the roll-on station where the label is securely affixed to the container.

Oscillating magazine – for lower and medium output

In the oscillating magazine the label stacks are placed in upright position. During label release the magazine swivels forward so that the front label edge touches the glue layer on the rotating glue roller. Due to the adhesive force the label is separated and pulled from the magazine. Integrating optional inkjet or bar code scanning devices at the label feed position is ideal.

Upgrades wetLAN 110 with oscillating magazine

– Tamper evident labelling with additional self-adhesive labelling unit; container orientation and label registration aligning the body and tamper label are available options.

– Controls and additional coding
