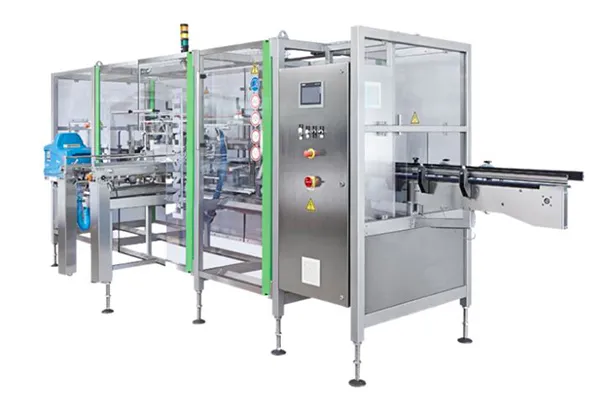

HotLAN 310

hotLAN 310

The machine model hotLAN 310 is the inline high-speed hot melt cut and stack labeller from LANGGUTH. The labeler‘s glue-saving hotmelt Technology delivers speeds up to 60.000 labellings containers per hour; for virtually all round containers receiving wraparound labels. Set-up times of 5–10 minutes as well as nonstop operation contribute to high uptime and Efficiency for your production line – important economic considerations for companies working continuous multi shift operations at peak performance throughout the year. The integration of coding or other control devices and reject functions provide a high-quality labelling solution and an immediate checkpoint for quality control within the line.

Advantages:

Wraparound label

Linear labeller; minimal investment in size/change parts

Minimum glue consumption due to spray glue system

High efficiency owing to fast changeover and simple operation

Closed, non-recirculation glue system excludes glue contamination

Operation:

At the labeler infeed a metering device creates a repeatable gap between containers, initiating progressive labelling processes. A metered container enters a belt station which carries the container – can, jar, bottle – throughout the labeler. Once in control of the carrier belts, the spinning container activates a photo eye timed to the release of pick up hot melt. Multiple glue modules spray glue dots onto the container just as the can contacts the leading edge of the label stack. The force of the glue adhesion pulls a single label from the magazine which wraps around the spinning can. As the trailing edge of the label pulls from the label stack an overlap bar extrudes hot melt onto the trailing edge. The carrier belts convey the spinning can into a brush section which tightens the label to the can. LANGGUTH’s hot melt application system is characterized as a closed, non-contact design as the glue pot is sealed, not open to the environment. Plus there is no glue roller touching the container. The spray glue system conserves nearly 50% hot melt usage compared to a glue roller. Moreover the spray system runs cleaner and delivers superior results.

The label magazine is infinitely adjustable within the minimum/maximum size parameters. Label magazine changeover is positive and repeatable, and quickly performed. Labels are refilled at full production speed without machine stoppage.

The hotLAN 310 is a simple mechanical design, yet still a high efficiency flexible labeler. No other hot melt labeler matches the total of ownership advantages of the hotLAN 310. The purchase price is lower than a rotary hot melt labeler. Changeovers are fast, simple, and tool-less. Maintenance costs are low considering output of up 60.000 containers/h. Additonally the combination of flexiblitity, reliability, and cost of ownership make this labeler a favorite for contract packers and companies operating in remote parts of the world.

Options:

– Labelling of paint cans with handle eyelet

– Inspect/Reject and other control devices
