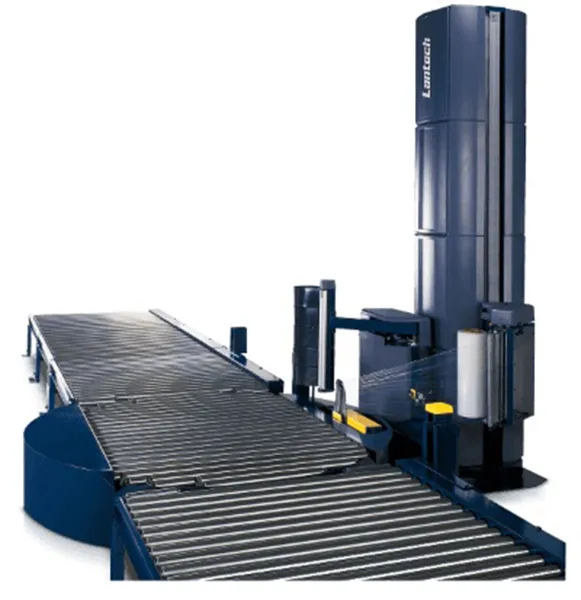

Q Automatic
Q Automatic
AVAILABLE OPTIONS
Increase the wrap height of your loadsReplace the 2032 mm (80") mast with a 2540 mm (100") or a 3556 mm (140") mast.
High Speed PackageIncrease the speed of the turntable to 25 rpm.
Load Seeking ClampEliminates the beginning film tail. Replaces the jaw clamp with a vacuum clamp that pivots out to the load.
6,000 LB Capacity TurntableIncrease the weight capacity of the turntable to 2721 kg (6000 lbs).
Cold PackageCold Package option allows efficient operation of stretch wrapper in an environment where the temperature range is 0 to -12 degrees Celsius (+32 to +10 degrees Fahrenheit).
Freezer PackageOperate in temperatures of -29 Celsius (-20 Fahrenheit).
Modular Electric Top PlatenStabilizes tall, lightweight or unstable loads during the wrap cycle.
Corrosive Duty PackageOperation in a corrosive environment. It is for machines with exposure to agents such as salt and fertilizer.
Pallet Grip®Makes a "cable" of film that locks the load to the pallet. The film cable decreases the risk of damage during shipment.
Turntable WashdownUse water at "city pressure" to clean the turntable. Make sure that the water can drain from the area.
Power Roller Stretch Plus - Film Delivery System (FDS)Senses and adjusts the wrap force to the changes in the tension on the film. It is for a turntable speed more than 12 rpm, for very light or fragile loads, or for exact control of the wrap force.
SPECIFICATIONS
Performance
Production Speed: Up to 45 Loads/Hr
Maximum Load Size: 1376 mm L1219 mm W2336 mm H
(54" L x 48" W x 92" H)
Minimum Load Size: 914 mm L914 mm W610 mm H
(36" L x 36" W x 24" H)
Maximum Load Weight: 1814 kg(4000 lbs)
Load Handling
Turntable Speed (Variable): 12 RPM
Turntable Size: 1321 mm Effective Width, 2057 mm Diameter: (52” EW, 81" D)
Turntable Drive: .075 kW (1hp) 180 VDC Motor w/ Brake
Perfomance Features
Pallet Grip®: Optional
Load Guardian: Not Available
Standard Film Width: 500 mm(20")
Standard Pre-Stretch: 200%(100-300% Available)
Wrap Force: Electronic Control
Film Capacity: 254 mm Diameter, 508 mm Width
(10" D x 20" W)
Film Delivery System: Power Roller Stretch
Automation Unit - Film Clamp: Reach Arm with Impulsed Hot Wire Film Cutter
Weight and Size
Approx. Shipping Weight: 2948 kg(6500 lbs)
Size: 5232 mm L3886 mm W3074 mm H
(206" L x 153" W x 121 1/8" H)
Service Requirements
Pneumatic: 85-142 lpm @ 6Bar, 3-5 cfm @ 80 Psi, 4 Bar (55 Psi)
Dedicated Electric Service Req. US: 480 V, 3ph, 60Hz, Wye w/Ground
Dedicated Electric Service Req. EU: 3L-PE-400V-50Hz-No Neutral
Enclosure: NEMA 12 Enclosure with Disconnect and Safety Lock-out
Control: PLC wth HMI Touch Screen
Warranty
Warranty Duration: 3 Years, Unlimited Cycles, All Components Covered
