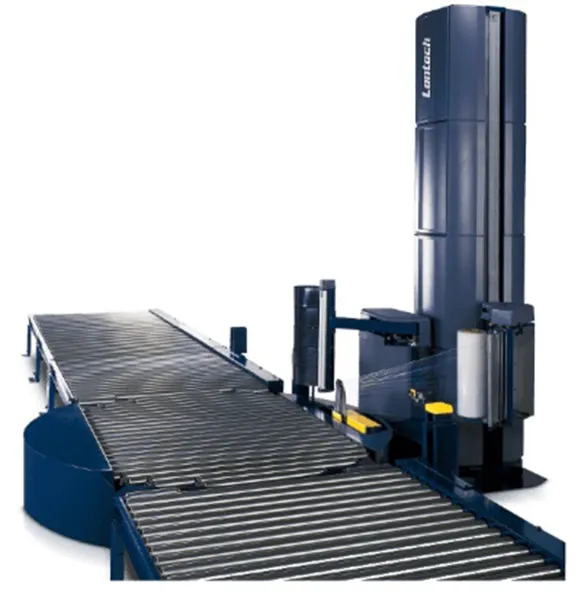

QL Automatic
QL Automatic
AVAILABLE OPTIONS
Extended Wrap HeightIncrease the wrap heights of your loads. Replace the 2032 mm (80") mast with a 2794 mm (110") mast. Increase the speed of the turntable to 25 rpm.
High Speed PackageIncrease the speed of the turntable to 25 rpm.
Load Seeking ClampEliminates the beginning film tail. Replaces the jam clamp with a vacuum clamp that pivots out to the load.
6,000 LB Capacity TurntableIncrease the weight capacity of the turntable to 2721 kg (6000 lbs).
Cold PackageMissing info. Should say “Cold Package option allows efficient operation of stretch wrapper in an environment where the temperature range is 0 to -12 degrees Celsius (+31 to +10 degrees Fahrenheit).”
Freezer PackageOperate in temperatures of -29 Celsius (-20 Fahrenheit).
Modular Electric Top PlatenStabilizes tall, lightweight or unstable loads during the wrap cycle.
Corrosive Duty PackageOperate in a corrosive environment. It is for machines with exposure to agents such as salt and fertilizer.
Turntable WashdownUse water at "city pressure" to clean the turntable. Make sure that the water can drain from the area.
SPECIFICATIONS
Performance
Production Speed: Up to 45 Loads/Hr
Maximum Load Size: 1372 mm L1219 mm W2336 mm H
(54" L x 48" W x 92" H)
Minimum Load Size: 914 mm L914 mm W610 mm H
(36" L x 36" W x 24" H)
Maximum Load Weight: 1814 kg(4000 lbs)
Load Handling
Turntable Speed (Variable): 15 RPM
Turntable Size: 1321 mm Effective Width 2057 Diameter
(52" EW, 81" D)
Turntable Drive: 0.75 kW (1 hp) 208-230/460 VAC Inverter Motor w Brake
Perfomance Features
Pallet Grip®: Standard
Load Guardian: Standard
Standard Film Width: 500 mm(20")
Standard Pre-Stretch: 225% (100-300% Available)
Wrap Force: Electronic Control
Film Capacity: 254 mm Diameter, 508 mm Width
(10" D x 20" W)
Film Delivery System: Metered Film Delivery System®
Automation Unit - Film Clamp: Reach Arm with Impulsed Hot Wire Film Cutter
Weight and Size
Approx. Shipping Weight: 2948 kg(6500 lbs)
Size: 5232 mm L3868 mm W3074 mm H
(206" L x 153" W x 121 1/8" H)
Service Requirements
Pneumatic: 85-142 lpm @ 6 Bar, 3-5 cfm @ 80 Psi, Clean Dry Air
Dedicated Electric Service Req. US: 480 V, 3ph, 60Hz, Wye w/ Ground
Dedicated Electric Service Req. EU: 3L-PE-400V-50Hz (No Neutral)
Enclosure: NEMA 12 Enclosure, UL Listed
Control: PLC wth HMI Touch Screen
Warranty
Warranty Duration: 3 Years, Unlimited Cycles, All Components Covered
