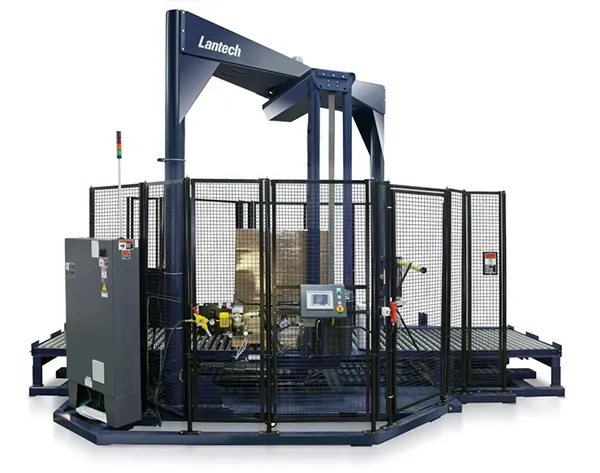

SL Automatic High Speed
SL Automatic High Speed
AVAILABLE OPTIONS
Cold PackageCold Package option allows efficient operation of stretch wrapper in an environment where the temperature range is +31 to +10 degrees Fahrenheit.
750 MM Metered Film Delivery SystemFor customer applications where 30” wide film is used.
25 RPM PackageWrap arm rotation is increased to 25 rpm. Includes additional fencing, visual barriers (Yellow Railroad Gates) at the infeed and exit transition, and a larger machine frame.
35 RPM PackageWrap arm rotation is increased to 35 rpm. Includes additional fencing, visual barriers (Yellow Railroad Gates) at the infeed and exit transition, and a larger machine frame.
40 RPM PackageWrap arm rotation is increased to 40 rpm. Includes 9/5/9 standard spaced conveyor layout with variable speed drive control and conveyor speeds of 60-90 FPM (high speed staging). Includes additional fencing and safety light guards.
Top Sheet DispenserTwo to four mil poly film, 80" wide is automatically applied over the top of load for moisture and dust protection. In-line top sheet dispenser model applies and secures sheet of film over load as it indexes into the wrap zone with no interruption to the wrapping cycle. Mid-wrap top sheet dispenser applies and secures sheet of film over top of load during the wrapping cycle. Load is protected with five-sided coverage.
Conveyor SectionsAvailable in 5' sections and 10' and 12' wrap zone sections. Close-spaced and tight-spaced conveyor rollers. Standard and non-standard pass heights. Includes safety fencing and additional safety photocells mounted on the safety shield.
Additional Wrap Height CapacityFor wrapping loads which exceed the 2032 mm (80") wrap height capacity of the standard system. Will handle loads up to 2794 mm (110") tall. Increases total operating height to 5486 mm (216") at standard pass height.
SPECIFICATIONS
Performance
Production Speed: Up to 110 Loads/Hr (depends on speed package)
Maximum Load Size: 1473 mm L1473 mm W2032 mm H
(58" L X 58" W X 80" H)
Minimum Load Size: 914 mm L914 mm W610 mm H
(36" L X 36" W X 24" H)
Maximum Load Weight: Conveyor Capacity
Load Handling
Wrap Arm Drive: VFD Motor Control
Wrap Arm Speed: Up to 40 RPM (depends on speed package)
Perfomance Features
Pallet Grip®: Standard
Load Guardian: Standard
Standard Pre-Stretch: 225% (100-300% Available)
Film Capacity: 254 mm Diameter, 508 mm Width
(10"D x 20" W)
Film Delivery System: Metered Film Delivery System®
Automation Unit - Film Clamp: Load Seeking Clamp® 4.0
Weight and Size
Approx. Shipping Weight: 5194 kg(11450 lbs)
Service Requirements
Pneumatic: 6 Bar, 3-5 cfm @ 80 Psi, Clean, Dry Air
Dedicated Electric Service Req. US: 480V, 3ph, 60Hz, Wye w/Ground
Dedicated Electric Service Req. EU: 3L-PE-400V-50Hz (No Neutral)
Enclosure: NEMA 12, UL
Control: PLC with HMI
Warranty
Warranty Duration: 3 years, Unlimited Cycles
