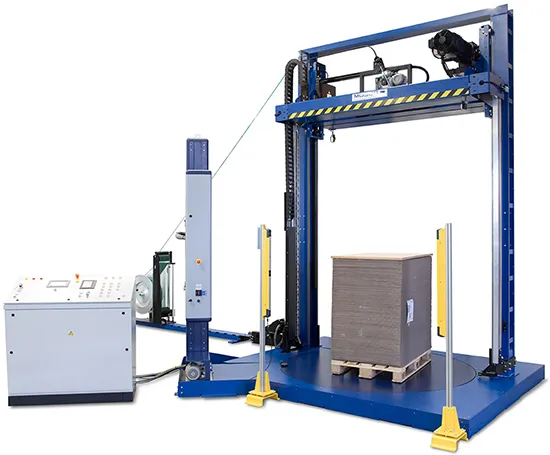

KZV-111-COMBI Automatic Pallet Strapping Machine

Description

KZV-111 BASIC MODEL

• Top-mounted sealing unit

• 1 KSR sealing unit and 1 vertical arch

• Moveable strap lance for strapping palletized goods

• 1-column construction up to 2,000mm

• 2-column construction up to 2,000/2,400 mm with pressure

Stretch wrapper

• Turntable diameter Ø 1,800 or 2,200mm

• Max. load for turntable: 3,000 kg weight and pressure

• Max. pallet size according to turntable dimensions

• Max. wrapping height (incl. pallet): 2,400mm

• Optical sensor for pallet height scanning

• Soft start and soft stop for turntable frequency controlled

• Frequency controlled speed of the turntable

• Frequency controlled speed of the lift slide

• Turntable stop in starting position

• Easy to operate
