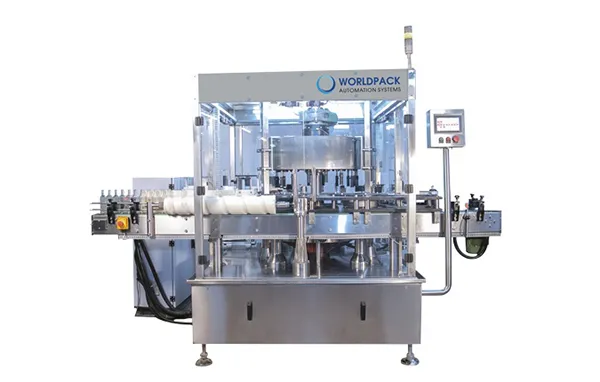

ROTARY LABELLING MACHINE
Our Rotary labelers are designed keeping in view the challenging applications of label orientation w.r.t. logo embedded on premium brand liquor and beverages bottles. The labeler applies label with great accuracy at the desired location on bottles without any manual intervention. Multiple labeling heads can apply upto 3 labels on bottles including neck label.
TECHNICAL SPECIFICATIONS
SPEED
:
MAX 240BPM
ROLL O.D.
CORE DIA 76 MM & OUTER DIA 300 MM
LABEL MATERIAL
CHROMO PAPER / PP / PE
LABEL DIMENSIONS
H:50 TO 100MM AND L:160-295MM
MOC
SS304, ALUMINIUM
POWER SUPPLY / CONSUMPTION
440V, 50HZ, 3 PHASE / 6.5 KW
NO. OF STAIONS
16
OPERATING SYSTEM
SERVO PLC WITH TOUCH SCREEN
DISPLAY
HMI- TOUCH SCREEN
WEIGHT
1700KG
CONVEYOR
L 3000 MM and W 114 MM
OPTIONAL
EXTENSION CONVEYOR
STANDARD FEATURES
OPTIONAL FEATURES
