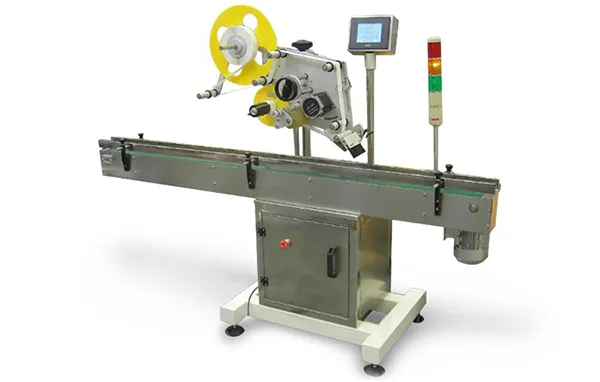

Top Labelling Machine
Worldpack Top Labelling Machine labels 20 to 25 containers per minute. Made out of 304 stainless steel, the system is compact, durable and versatile. All moving parts are covered for added safety. The conveying system is equipped with VFDs to enable variable speed depending upon product requirements. Other standard features include no changing parts, colour touch display for easy access and control and password protection.
TECHNICAL SPECIFICATIONS
SPEED
:
40-240 PPM (DEPENDS ON PRODUCT)
ROLL O.D.
280MM
LABEL MATERIAL
PAPER / FILM / PP / PE
LABEL DIMENSIONS
MIN: 25X 25MM MAX: 250 X250MM
MOC
SS 304
POWER SUPPLY / CONSUMPTION
220VAC / 50HZ / SINGLE PHASE / 1.5KW
OPERATING SYSTEM
STEPPER / SERVO - ALLEN BRADLEY / PANASONIC / B&R SYSTEM WITH TOUCH SCREEN HMI
MACHINE DIMENSIONS
2500MM X 540MM X 1900MM (L X B X H)
WEIGHT
KGS 250
PRINTER
CIJ CAN BE INTEGRATED WITH THE MACHINE
APPLICATION
TOP LABELLING / HOLOGRAM APPLICATION / L-SEAL
OPTIONAL
SHROUD
