Tamper evident labelling machine

Tamper evident labelling machine

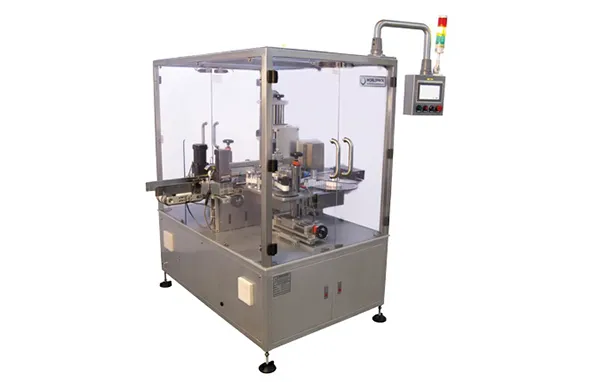

Tamper Evident labelling machine

Tamper evident labelling machine is a high-performance machine with precise and automatic labelling to each side of the carton ensuring that the secure cartons leave the machine sealed with unique identity. A wide range of carton sizes can be handled at high speeds with 60- 300 cartons per minute. The track and trace feature will aid the cartons to be traced at any point during the increasingly complex world-wide supply chain for pharmaceutical products.

TECHNICAL SPECIFICATIONS

SPEED

:

60-300 CARTONS PER MINUTE

ROLL O.D.

:

350MM

LABEL MATERIAL

:

PAPER / FILM / PP / PE

LABEL DIMENSIONS

:

MIN:15MM X 25MM

MAX:20MM X 75MM

MOC

:

SS 304

POWER SUPPLY / CONSUMPTION

:

220VAC / 50HZ / SINGLE PHASE / 2.0KW

OPERATING SYSTEM

:

MICRO CONTROLLER WITH KEYPAD / STEPPER PLC OR SERVO WITH TOUCH SCREEN

MACHINE DIMENSIONS

:

1200MM X 950MM X 1500MM (L X B X H)

1500MM X 950MM X 1500MM (L X B X H) WITH TRACK AND TRACE

PRINTER

:

TIJ CAN BE INTEGRATED WITH THE MACHINE

APPLICATION

:

TAMPER EVIDENT ‘L’ SEAL ON MONO CARTONS

OPTIONAL

:

TUCK IN SINGLE SIDE / TUCK IN BOTH SAME SIDES / OPPOSITE SIDES

COVERED

:

IN DIAGONALLY OPPOSITE SIDES

STANDARD FEATURES

  • No change parts
  • Product count
  • 3 level password protection
  • Synchronised VFD’s for single point control
  • Precise ‘L’ seal for tamper evidence on tuck in type monocartons of single/double same side/double diagonally opposite side
  • Colour Touch Screen for easy accessibility

OPTIONAL FEATURES

  • On line inspection & rejection with camera of text and 2D barcode
  • Safety cabinet with interlocks
  • Electrical panel door interlock
  • Label roll end alarm
  • Jamming sensor
