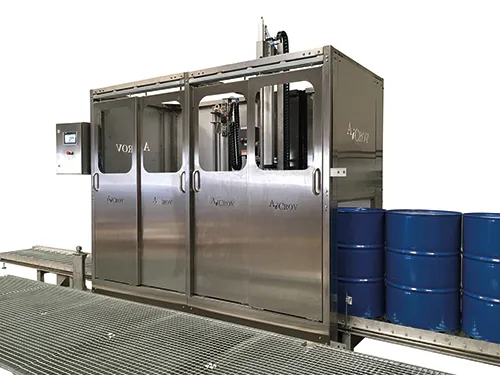

Automatic drum filling machine – EL2-B

Fully automated filling machine for weighted and production line filling of metallic and plastic 120 to 220-litre barrels

Drums and containers. The machine may be equipped with multiple workstations. The model is designed for high filling production level featuring a high level of automation.

• High reliability and durability of the equipment.
• Automatic containers feeding and evacuation.
• It allows for multiple filling stations. Suitable for production lines.
• It allows for controlling a whole line of conveyors.
• Automatic alignment of the dosing lance and the bunghole.
• Weighted, mass or flow filling.
• Electro-pneumatic control system.
• It allows for controlling product flow to the filling machine.
• Easy configuration and entry into operation.
• For high production levels.
• Adjustable filling height for filling containers of different sizes.
• Possibility of manufacturing in different materials and finishes.
• Available in an anti-explosion version for dangerous areas.
• Possibility to operate in a production line.
• Quick format change with no need for tools.
• Interchangeable dosing lances.
• Includes an automatic earthing connection system (optional).
• Configuration flexibility and multiple automatic workstations:

• Bunghole Centring / Searching.
• De-capping.
• Inertisation
• Filling
• Capping
• Sealing

• Approximate nominal production
  • 90 200-litre containers / hour

• Weight of the machine

• To be defined.

• Weight scale resolution

• 3,000 divisions: 0.5 kg.
• 6,000 divisions: 0.25 kg.
• 10,000 divisions: 0.10 kg.

• Power

• Electrical: 380 VAC 50 Hz.
• Pneumatic: 6 bar.
