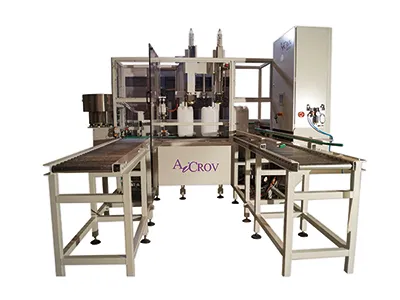

Automatic filling machine for cans and buckets – EL2-E

Fully automated filler for weighted and production line filling of 1 to 60-litre. Round or rectangular- based metallic or plastic cans, barrels and drums.

The Machine may be equipped with multiple workstations. The model is designed for high filling productions featuring a high level of automation.

• High reliability and durability of the equipment.
• Automatic containers feeding and evacuation.
• It allows for multiple filling stations. Suitable for production lines.
• It allows for controlling a whole line of conveyors.
• Automatic alignment of the dosing lance and the bunghole.
• Weighted, mass or flow filling.
• Electro-pneumatic control system.
• It allows for controlling product flow to the filling machine.
• Easy configuration and entry into operation.
• For high production levels.
• Adjustable filling height for filling containers of different sizes.
• Possibility of manufacturing in different materials and finishes.
• Available in an anti-explosion version for dangerous areas.
• Possibility to operate in a production line.
• Quick format change with no need for tools.
• Interchangeable dosing lances.
• Configuration flexibility and multiple automatic workstations:
  • Bunghole Centring / Searching.
  • Inertisation
  • Filling
  • Capping

• Approximate nominal production
  • 165 30-litre containers / hour (1 lance).

• Weight of the machine
  • To be defined.

• Weight scale resolution
  • 3,000 divisions: 0.020 kg.
  • 6,000 divisions: 0.010 kg.
  • 10,000 divisions: 0.005 kg.

• Power
  • Electrical: 380 VAC 50 Hz.
  • Pneumatic: 6 bar.
