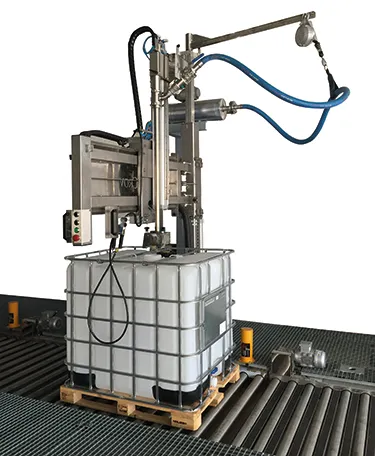

Semiautomatic filling machine – SP2

Automatic filling machine for weight filling of palletised containers from 20 to 1.500 lts. (drums, IBCs, totes, bulk containers, canisters, pails, etc.). Designed to be installed into a pallet conveyor line

• High reliability and durability of the equipment.
• Automatic container feeding and evacuation of the containers by means of chain or roller conveyors.
• The size of the input and output accumulation conveyor will depend on productivity.
• It allows for automating a whole line of conveyors.
• Manual alignment of the filling lance and the bunghole.
• Weighted, mass or flow filling.
• Automatic filling control with all AicrovFill® functionalities.
• Electro-pneumatic dosing lance lifting system.
• Easy configuration and entry into operation.
• For medium-sized productions and frequent format or product changes.
• It allows fast dosing lance interchange for frequent format or product changes.
• Adjustable filling height for filling containers of varying sizes.
• System structure in different materials and finishes.
• Available in an anti-explosion version for dangerous areas.

• Approximate nominal production
  • 70 200-litre containers / hour.
  • 15 1,500-litre containers / hour.

• Weight of the machine: 700 Kg

• Weight scale resolution
  • 3,000 divisions: 0.50 kg.
  • 6,000 divisions: 0.25 kg.
  • 10,000 divisions: 0.10 kg.

• Power
  • Electrical: 380 VAC 50 Hz.
  • Pneumatic: 6 bar.
