AiCROV

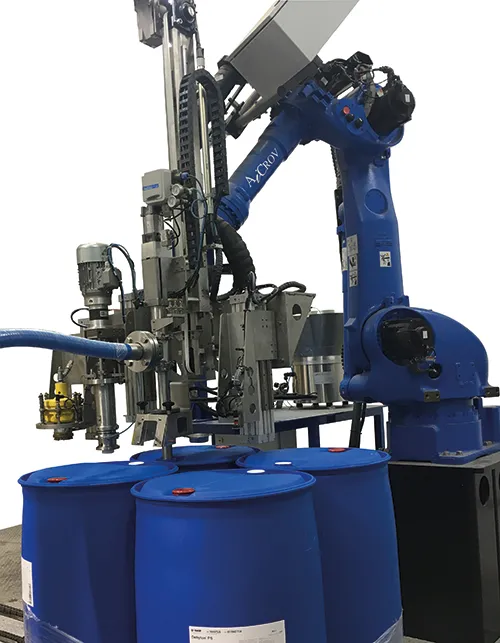

Automatic Robot Filler – RF

Fully automated machine for weighted and production line filling of drums, cans, barrels and IBCs on pallets

• High reliability and durability of the equipment.
• Automatic containers feeding and evacuation.
• It allows for multiple filling stations. Suitable for production lines.
• It allows for controlling a whole line of conveyors.
• Automatic alignment of the dosing lance and the bunghole.
• Weighted, mass or flow filling.
• Electro-pneumatic control system.
• It allows for controlling product flow to the filling machine.
• Easy configuration and entry into operation.
• For high production level with high level of automation.
• Adjustable filling height for filling containers of different sizes.
• Possibility of manufacturing in different materials and finishes.
• Available in an anti-explosion version for dangerous areas.
• Possibility to operate in a production line.
• Quick format change with no need for tools.
• Interchangeable dosing lances.
• Possibility of placing using an artificial 3D viewing system.
• Configuration flexibility and multiple automatic workstations:
  • Bunghole Centring / Searching.
  • De-capping.
  • Inertisation
  • Filling
  • Capping
  • Sealing

• Approximate nominal production
  • 65 200-litre containers / hour.
  • 18 1,500-litre containers / hour.

• Weight of the machine
  • To be defined.

• Weight scale resolution

• 3,000 divisions: 0.5 kg.
• 6,000 divisions: 0.25 kg.
• 10,000 divisions: 0.10 kg.

• Power
  • Electrical: 380 VAC 50 Hz.
  • Pneumatic: 6 bar.
