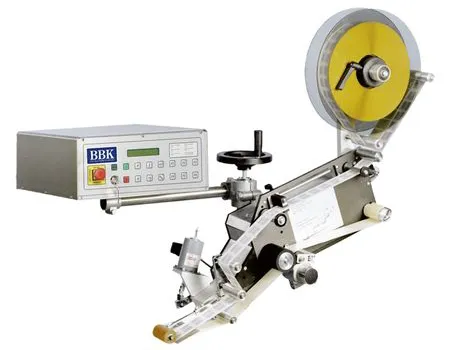

Label applicators S - SM - SEM - N - PN - MINI
These dispensers are distinguished by the high quality components used, the excellent finish and the robust mechanical construction. These factors make the RAPID dispensing systems a reliable partner to deal with all concerns involved with labelling and to facilitate optimally adapted solutions. A modular structure ensures the user fast and simple retrofitting or extensions to the system.
On request each of the dispensing systems can be equipped with a receptacle for leporello-folded label material. Although our dispensing systems are classified according to standard widths, we also produce smaller, intermediate and larger widths to meet customer specifications.
RAPID S / SM
ALWAYS OPTIMALLY PLACED
The Rapid S series dispensers handle simple labelling requirements in the speed range up to 30 m/min with top precision. At higher rates of up to 60 m/min the RAPID SM series dispensers are used. The step-action motor version dispenses the label with an accuracy of +/0.5 mm.
The dispensers are modular in design and can therefore be extended by retrofitting a variety of printing and control equipment etc.
Compact design for all applications
• Control system including operating unit in an external 19” housing
• A variety of cable lengths make it possible to attach the control system in the most accessible position
• Easily integrated into existing and new packaging lines
• Different dispenser tongues (fixed tongue, pneumatic label transfer station, movable dispenser tongue, pneumatic and magnetic dispensing tongue) guarantee precision labelling.
• Suitable for labelling a wide variety of products
Simple fast to operate, yet intelligent
• Operator guidance via a 2-line, illuminated LCD display in the language of your choice
• Product memory for fast simple conversion to another product
• Constant monitoring of the labelling process
• Clear text display for end of label tape, torn carrier tape or other machine states
• Options include for example: thermal transfer printer, hot stamping unit, relief embossing unit, book printing ink unit, label prior warning, 5.7” touch panel, RS 232 interface or an Ethernet interface, speed adaptation, mechanical label scanning, label scanning by means of an ultrasonic sensor.
Specifications
RAPID S
Type / rotation: left / right
Weight: 30 kg
Standard widths: 60, 80, 120, 160, 200 and 250 mm
Passage width: Model width + 4mm
Dispensing speed: 0-30 m/min
Labelling precision: +/- 1 mm
External reel diameter:290 mm (350, 400, 450, 500 mm)
Diameter of core: 40 or 76 mm (100, 150 mm)
Drive: DC motor
Control system: Microprocessor
Voltage supply: 230V, 50 - 60Hz
In-/outputs: 8 E/8 A extendable to 32 E/32 A
Protection class: IP22 (optionally to IP54)
RAPID SM
Type / rotation: left / right
Weight: 32 kg
Standard widths: 60, 80, 120, 160, 200 and 250 mm
Passage width: Model width + 4mm
Dispensing speed: 0-60 m/min (120 m/min)
Labelling precision: +/- 0,5 mm
External reel diameter:290 mm (350, 400, 450, 500 mm)
Diameter of core: 40 or 76 mm (100, 150 mm)
Drive: Step-action motor
Control system: Microprocessor
Voltage supply: 230V, 50 - 60Hz
In-/outputs: 8 E/8 A extendable to 32 E/32 A
Protection class: Dispenser: IP54
Electronics: IP22 (optionally to IP54)
RAPID SEM
PRECISE – EXCELLENT - PERFECT
For all applications demanding maximum precision at a speed of up to 60 m/min (120 m/min with a motor-driven prewinder), we recommend the SEM series. These dispensers have a drive with servo motor.
• The controls, including the operating unit, are integrated in the dispenser housing
• No more space is required
• Easily integrated into existing and new packaging lines
• Various dispenser tongues (rigid dispenser tongue, pneumatic label transfer station, movable dispenser tongue, pneumatic and magnetic dispensing tongue) guarantee precision labelling
• Suitable for labelling a wide variety of products
Simple fast to operate, yet intelligent
• Operator guidance via a graphic, illuminated display (43.5 mm x 30 mm) with function keys
• Constant monitoring of the labelling process
• Icon display for end of label tape, torn carrier tape or other machine states
• Options include for example: thermal transfer printer, hot stamping unit, relief embossing unit, book printing ink unit, label prior warning, 485 interface speed adjustment, mechanical label scanning, label scanning by means ultrasonic sensor
Specifications
RAPID SEM
Type / rotation: left / right
Weight: 42 kg
Standard widths: 80, 160, 200 and 250 mm
Passage width: Model width + 4mm
Dispensing speed: 0-60 m/min
Labelling precision: +/- 0,5 mm
External reel diameter:290 mm (350, 400, 450, 500 mm)
Diameter of core: 76 mm (100, 150 mm)
Drive: Servo motor
Control system: Microprocessor
Voltage supply: 230V, 50 - 60Hz
In-/outputs: 10 E /8 A
Protection class: IP54
RAPID N
THIS HOW TO REALLY MAKE THINGS STICK
Where conventional tabletop dispensers reach their limits because of their lightweight construction and the dimensions of the labels, the RAPID N comes into play. The robust, motor-driven tabletop dispenser is available for label widths of 120 mm, 160 mm, 200 mm and 250 mm. They are scanned by means of a bifurcated light barrier, mechanical scanning or an ultrasonic stop sensor which is available as an option.
Specifications
RAPID N
Performance: Table dispenser
Weight: 28 kg
Standard widths: 120, 160, 200 and 250 mm
Passage width: Model width + 4mm
Dispensing speed: 8 m/min
Labelling precision: +/- 1 mm
External reel diameter:290 mm
Diameter of core: 40 or 76 mm
Drive: Astro motor
Control system: Microprocessor
Voltage supply: 230V, 50 - 60Hz
In-/outputs: 10 E /8 A
Protection class: IP22
RAPID PN
MORE THAN JUST HOT AIR
The RAPID N was created on the basis of the concept of the tried and tested RAPID N series. Drive and control are fully pneumatic. Therefore the RAPID PN tabletop dispenser is superb for all EX zones.
Specifications
RAPID PN
Performance: Table dispenser
Weight: 26 kg
Standard widths: 60, 80, 120, 160, 200 and 250 mm
Passage width: Model width + 4mm
Dispensing speed: 10 m/min
Labelling precision: +/- 1 mm
External reel diameter:290 mm
Diameter of core: 40 or 76 mm
Drive: Compressed air motor
Control system: Pneumatic
Protection class: IP22
RAPID MINI
A MIGHTY MIDGET
Equipped with one or two pneumatic traversing units, the RAPID MINI executes simple application tasks to furnish the product with a label both while running or standing still. And the RAPID MINI needs only a tiny amount of space. It is controlled by means of an ultra fast, minute micro
processor. The settings are transmitted to the micro processor by means of the software supplied with it. Once it has been configured, the PC/notebook can be withdrawn from the dispenser. This ensures that the user cannot make any setting errors during operation. Besides on and off switches (revolving snap switches) there is a fault indicator light and an illuminated push-button switch to acknowledge the fault reset. Once the parameters have been set, the user merely replaces the label reel and acknowledges the process.
Specifications
RAPID MINI
Type / rotation: left / right
Weight: 28 kg
Standard widths: 60, 80, 120 mm
Passage width: Model width + 4mm
Dispensing speed: 8 m/min
Labelling precision: +/- 1 mm
External reel diameter:290 mm
Diameter of core: 40 or 76 mm
Drive: Astro motor
Control system: Microprocessor
Voltage supply: 230V, 50 - 60Hz
In-/outputs: 10 E /8 A
Protection class: IP22
