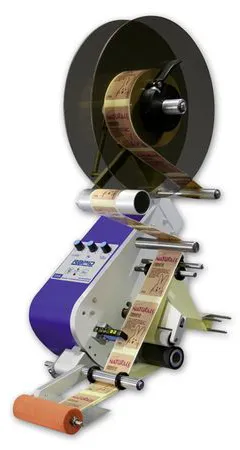

Labelling machine
RAPID EASY 100/160 Label Applicators are compact and easy to use and, despite their small size, packed with ‘State of the Art’ features. They are built to the highest technical standards, including IP44 protection, excellent EMC capabilities, connecting options for NPN and PNP sensors, DISP-operating button for manual label dispensing and a fully adjustable, low friction peel bar. The clutch less stepper motor drive delivers infinitely variable labeling speed with precision positioning.
Specifications
Rapid EASY 100
Model / direction of rotation:left / right
Dimensions / space: L:400 x H:630 x B:280 mm
Weight: 15 kg
Opening width: 100 mm
Max. dispensing rate: max. 25m/min
Stop accuracy: +/– 0.5mm
Min. label length: 10 mm
Min. label width: 12 mm
Min. label spacing: 2 mm
Max. label roll diameter: 300 mm
Max. label roll weight: 10 kg
Motor: 5 ph. Stepper motor, 500 Steps, 1,9 Nm
Drive system: 5-phase stepper motor
Operation temperature: +5 bis +40 ºC
Air humidity: 15 - 90%, non-condensing
Noise:
Control system: Microprocessor
Mains voltage: 230V, 50 / 60Hz
Fuse: 2AT (230V)
Power consumption: 100 VA
Certification: CE
IP protection: IP44 (optional IP54)
Rapid EASY 160
Model / direction of rotation:left / right
Dimensions / space: L:400 x H:630 x B:340 mm
Weight: 15 kg
Opening width: 160 mm
Max. dispensing rate: max. 20m/min
Stop accuracy: +/– 0.5mm
Min. label length: 10 mm
Min. label width: 12 mm
Min. label spacing: 2 mm
Max. label roll diameter: 300 mm
Max. label roll weight: 10 kg
Motor: 5 ph. Stepper motor, 500 Steps, 1,9 Nm
Drive system: 5-phase stepper motor
Operation temperature: +5 to +40 ºC
Air humidity: 15 - 90%, non-condensing
Noise:
Control system: Microprocessor
Mains voltage: 230V, 50 / 60Hz
Fuse: 2AT (230V)
Power consumption: 100 VA
Certification: CE
IP protection: IP44 (optional IP54)
Optional features
• Stamp adapter
• Magnetic adapter
• Adjusting units
• Sensors
The RAPID EASY label dispenser is a well-designed and sturdy mechanical device made from top quality components. RAPID label dispensing systems are thus highly reliable and can be optimised to cater for all labelling requirements and applications. The modular structure of the RAPID system allows for fast and easy upgrading and retrofitting at any stage.
