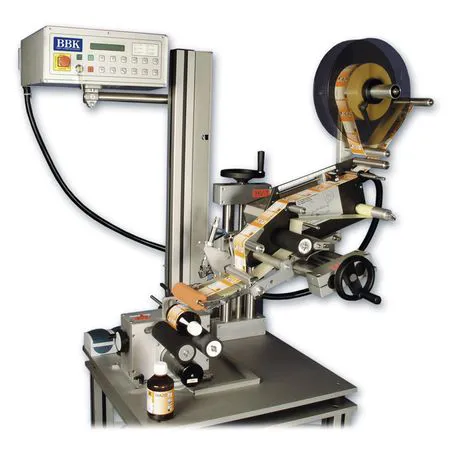

Semi automatic labelling machine

Labelling your products becomes a pleasure with our semi-automatic machines. For small to medium-sized production jobs these systems provide an excellent alternative to a fully automatic machine. And the best thing about them is that up to 80% of the modules contained in the semi-automatic labelling machines can later be integrated into a fully automatic one. The devices can be operated as a desktop version or as a system with a base frame of its own (mobile).

The TNC series semi-automatic labelling machines are available in a variety of versions and configurations and can easily be refitted for other products.

With these systems the products are inserted by hand.

Product labelling is extremely precise because flat or specially formed products are fixed in a format receptacle (partially mechanically adjustable to different products) and cylindrical products such as cans or bottles in a 3-roller system before the label is applied.

The labelling process is triggered by a micro switch, pressure switch, foot switch or

by a light barrier.

Specifications

Electrical connection: 230V / 50Hz

Air connection: 1/2" - 6 bars (not required for all systems)

Output: approx 15-20 products/min

Materials: Stainless steel, aluminium and anodised aluminium
