Foil Stamping Machine

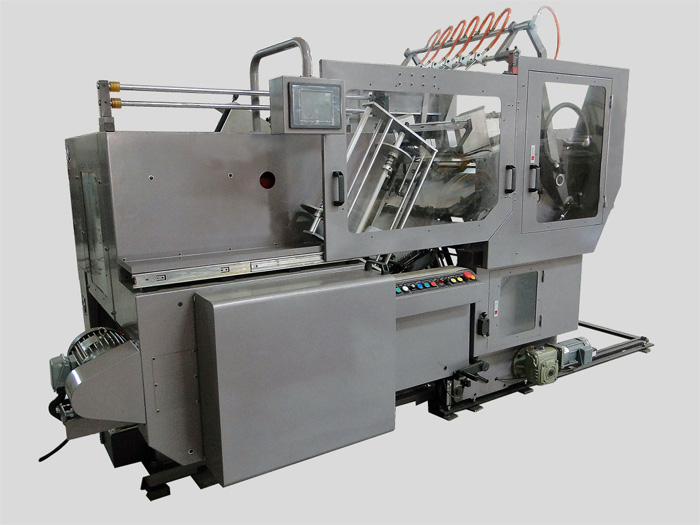

DG 708 Die cut/Foil Stamping Machine

The reliability of DG-780 is designed for die cutting and foil stamping purpose including auto air feeder, two foil draw, and quick change foil plate and auto delivery device on various post printing jobs. The processing materials including sticker, labels/tags, card board, metal films, plastic films and corrugated paper etc. Equipped with deep air suction feeder on automatic feeding, side lay, front lay and deep delivery device. User friendly digital color touch screen use for to set up various parameters and save jobs for repeat works. DG-780 capable on economic and high productivity by 2200 sheets/ hour.

Product Specification:


Model DG-780
Max. materials size 780mm(W)x570mm(L)
Min. materials size 280mm x 250mm
Max. die cutting frame size 750mm X 540mm
Max. foil stamping area 780mm x 550mm
Materials thickness 0.12~3mm
Max. speed 2200 sheets/H
Foil rolls Two rolls
Heating power 8 KW by four area
Higher temperature 180 Cels degree
Feeder Air suction
Dimension 3800 X 1950 X 2050mm
Power supply 220V 60Hz three Phases
