Digiprint Company Limited

Jing-Long Str., Wen-San Distr., Taipei City, 11683, TAIWAN

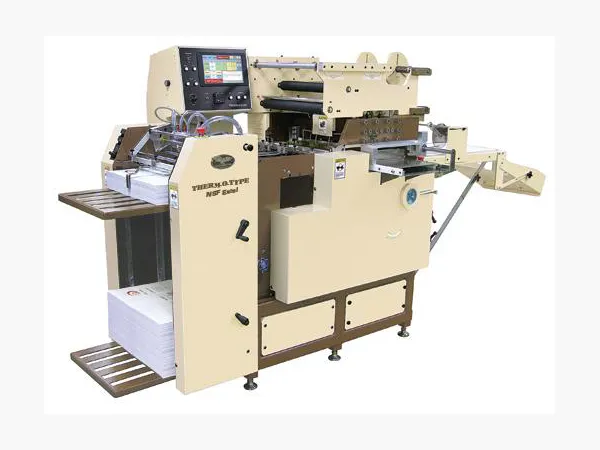

NSF Excel Multi Functions Die Cut and Foil Stamp Machine

NSF Excel Multi Functions Die Cut and Foil Stamp Machine offers a new sheet size and image/die cut area format that has been optimized to meet evolving customer requirements.

Applications of NSF Excel include greeting cards, business cards, stationery, invitations and announcements, commercial letterpress work as well as die cutting and enhancing/finishing digital output.

NSF Excel Capabilities:

Flat foil stamping
Blind and foil embossing
Die cutting
Kiss cutting
Perforating/Scoring
Imprinting and numbering
HSFF (high speed foil fusing)
Up to 5,000 impressions per hour
18.5” by 20” maximum sheet size
12” by 17.625” impression area
Windows XP computer control

Specifications:

Model	NSF Excel
Max. paper size	470mm X 508mm
Min. paper size	89mm X 114mm
Max. die cut size	305mm X 448mm
Max. speed	5000sheets/Hr
Thickness	0.7~0.4mm(depending on environmental)
Die cut & foil stamp	Platen
Max. imprint	8 times/per sheet
Feeder	Auto air sucktion
Max. foil diameter	183mm
Power	220V single phase
