GIC 5000 - Vertical Form Fill & Seal Machine

GIC 5000 - Vertical Form Fill & Seal Machine

• Full range from PLC pneumatic machine to fully-integrated maintenance-free servo system.
• The latest generation control software is used to simplify operation and maintenance.
• Proven robust mechanical and electrical design, ensure industry leading reliability and low cost of ownership.
• Machine adjustments via full feature operator HMI touch-screen.
• Available as either a standalone unit, complete with feed system or part of a turnkey solution.
• Only the highest quality materials and components are used to satisfy the most demanding environments.
• The machine can be tailored to the customer’s specification by our in-house design team.
• Maximum access for clean-down and maintenance.
• Multi change temperature control from HMI.

Standard Features

• • • Inverter controlled twin belt transport system
    • Pneumatically operated horizontal seal jaws
    • PLC Control system
    • Horizontal jaw obstruction detector
    • Touch-screen operator interface
    • Reel run out Sensor
    • Mild Steel powder coat finish
    • Hand-wheel Adjustment for quick tracking of wrapping material

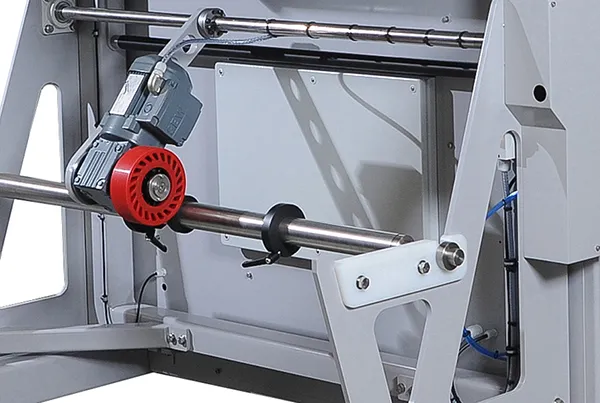

    • Powered unwind

Optional Features

• • • Servo motor driven transport and horizontal sealing jaws
    • Stainless steel and hard anodised aluminium construction
    • Polyethylene sealing system (impulse welding)
    • Gas flushing
    • Static eliminator
    • Bag shaker
    • Deflator unit
    • Finish bag take-away elavator
    • Overprinter
    • Selectable multi-pull transport cycles
    • Adjustable pack support
    • Print Registration unit
    • Heat Seal

Applications

• • Industrial Hardware
  • Pulses & Powders
  • Pet Foods
  • Aggregates
  • Fertilizers

Pack Styles

• • Pillow
  • Gusset
  • Block Bottom
  • Euroslot
  • Punch Hole
  • Easy Open / Reclose with zip
  • Quadpack

Feed System Options

• • Augers
  • Linear weighers
  • Multi-head weighers
  • Counters
  • Volumetric fillers
  • Liquid pumps
  • Bucket elevators

Technical Specification

• • Weight: 2200kg
  • Maximum Pack Sizes: 580mm wide x 1000mm long
  • Maximum Speed: 30 packs per min
  • Power Supply: 415V 3-phase 3kW (4kW for servo option)
  • Compressed Air: Free air – 0.27 cubic mtrs/min (0.06 cubic mtrs/min for servo option) dependent on speed and application.
  • Finish: Powder Coated Mild Steel
  • Packaging Materials: All suitable heat sealable materials including laminates and polyethylenes
  • Max Reel Outer Diameter: 600mm (max reel weight 200kg)
  • Reel Core Diameter: 76mm
